PRODUCT DESCRIPTION

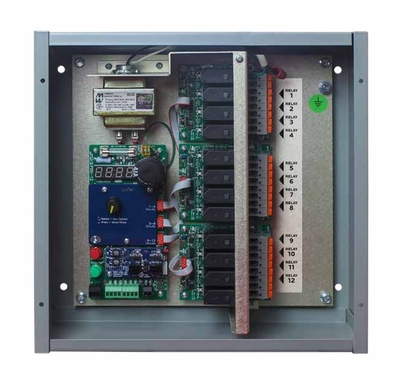

Retrofit DMX Lighting Control Relay Panel.
120V (12) circuit model. Cabinet & DMX512 controller with 12 Relays, (30A switching capability each).
Each motorized breaker is DMX512 addressable via a simple set of jumpers on the LynTec control board. Once the DMX address starting point is set by inserting the jumper, each motorized breaker has the next sequential address assigned to it (one address per breaker), the DMX operator can then program the breaker addresses for individual control. The LynTec control boards only use as many addresses as there are motorized breakers connected to it, this saves valuable DMX addresses for other equipment. DMX commands for each breaker are on, off or no change.
Features
- Tested, complete package — low labor — mount next to circuit breaker panel to control AC power “hot” lines
- Reliable Panasonic latching in modules of 4 relays for easy expansion
- Low power consumption — no continuous relay coil current — runs cool for long life
- Diagnostic LEDs and internal ON -OFF test switches speed installation for testing and troubleshooting
- Cabinet and all components connected to high voltage are ULlisted — Electrician friendly
- 4, 8 or 12 circuits — 120, 240 or 277volt models available
- Daisy-chains for unlimited circuit count control
- DMX 512 control standard in all panels, a simple jumper system sets your addressing
- Control circuits individually or in zoned group
- Simplest control set-up and operation in the industry
- No on-site commissioning or factory start-up required
- Emergency auto-on feature for egress lighting standard (ETL listed UL 924)
- Saves Space
- Saves redundant installation and hardware costs!
- Energy efficient – NO holding current or heat sinks required to maintain state – Runs cool, lasts long!
Specifications
- Warranty - Yes
- C Voltage: 277 Volts
- Warranty (Length/Type): 5 Years Limited
- Certifications: UL
