LynTec RPCR-8 RPC Relay Panel w/ (8) Single-Pole 30A Panasonic Relays

PRODUCT DESCRIPTION

Self Contained, Web Enabled, Remote Control Relay Panel.

RPCR-8 RPC Relay Panel w/ 8 Single-Pole 30A Panasonic Relays

State of the Art in Lighting Control Panels

Self-contained web server for setup and control replaces Master control systems for small and medium sized installations. Thanks to modern processors, today’s self-contained lighting control panels include very sophisticated controllers that rival yesterday’s master computer control platforms, but are contained in the same enclosure as the relays or controllable breakers. These state of the art lighting control panels offer advanced functionality, much simpler set-up and control, at a much more reasonable price.

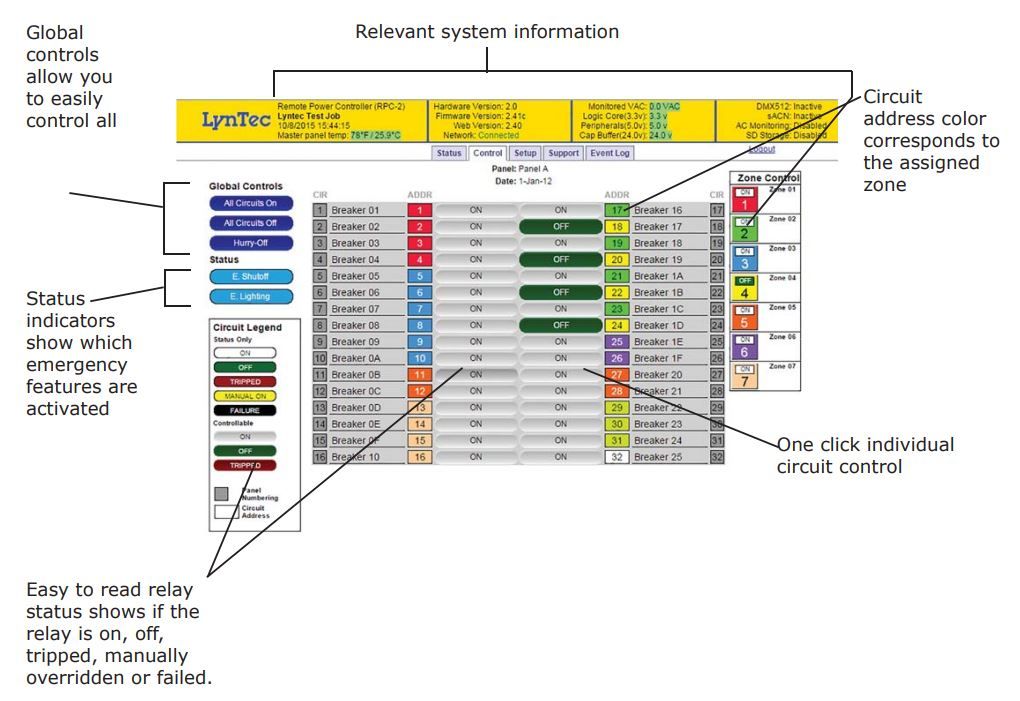

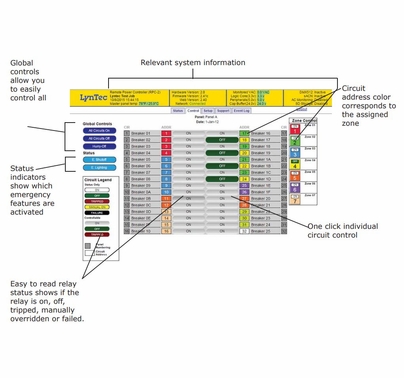

Two of the most important additions to today’s lighting control panels are imbedded web servers and Internet Protocol (IP) connectivity. IP is the highway that public Internet travels over. In addition to shopping and web surfing IP connections also make it possible to print a document to a shared office printer or send calendar appointments to screen on your refrigerator. This same functionality is now available in Intelligent Lighting Control (ILC) panels. Initial setup, control and monitoring of your ILC is done with your favorite web browser or smartphone application because the web server is built into the controller. Simply connect the controller to a network, put the controller’s IP address into your browser (Explorer, Chrome, Safari, Firefox etc.), and the graphical user interface (GUI) displays.

Features

• Panel packages are ready to install, includes hardware and software.
• Integrated web server and browser interface for remote set-up, operation and monitoring. With patent-pending features no one else has!
• So easy to set up that no on-site factory commissioning is required.
• Control relays individually or establish up to 12 zones for grouped operation.
• Simply point and click for easy zone setup and breaker operation.
• Built in scheduling program with astronomical clock for timed zone control.
• Built in contact closure inputs for sensor or wall switch control.
• Built in IP interface for smart phone, tablet or laptop control and monitoring.

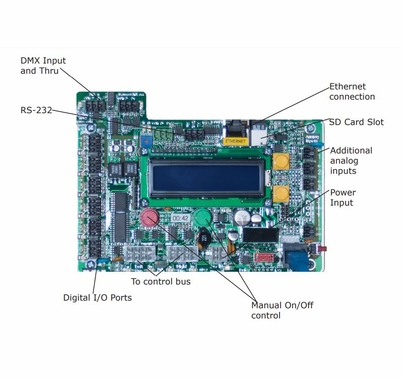

• Seamless integration into any DMX, sACN, HTTP, Telnet, RS-232 or BacNET (optional) control system.
• Circuit level load-shedding feature standard.
• Circuit level sequencing with selectable step-rates standard.
• Circuit level selectable auto-on egress lighting feature standard (ETL listed UL 924).
• Optional outbound signaling relay control.
• Built-in emergency override function standard.
• Power outage and brownout protection (optional) assures that your circuits never power up or down incorrectly.
• 120/208 or 277/480 control
• Locking hinged cover - (lock optional)

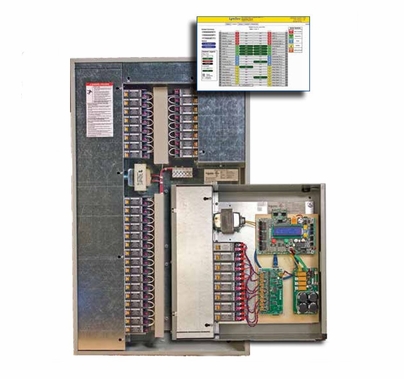

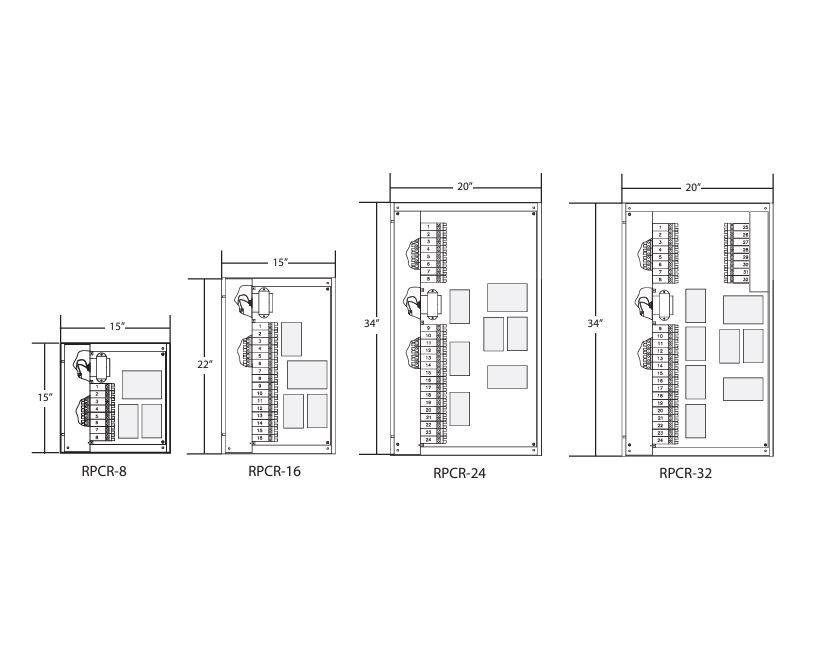

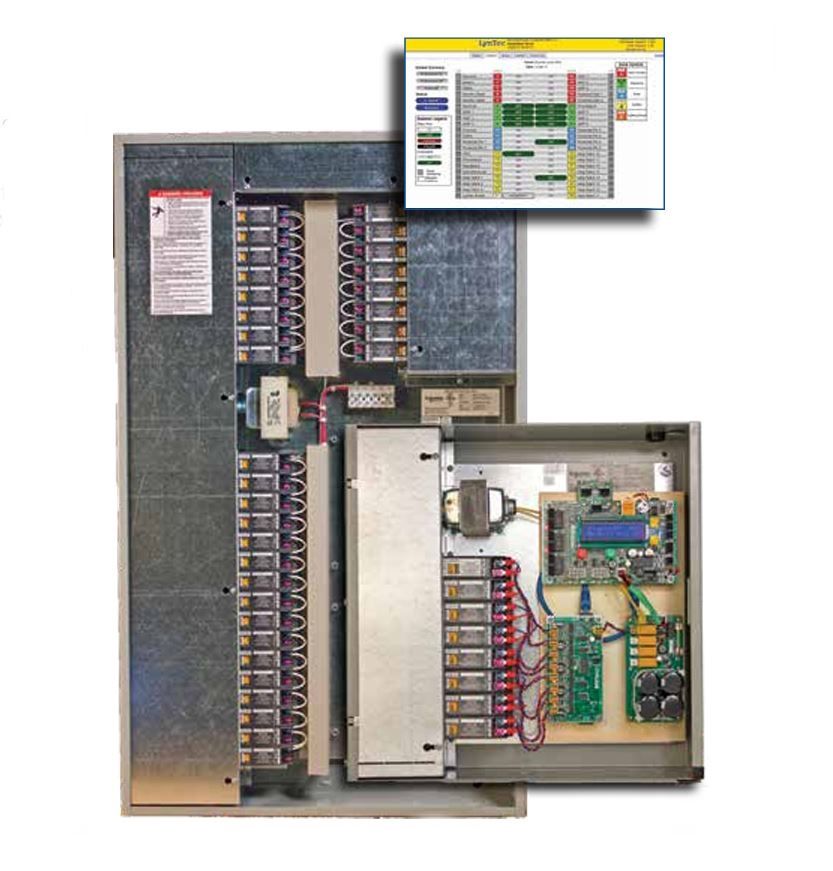

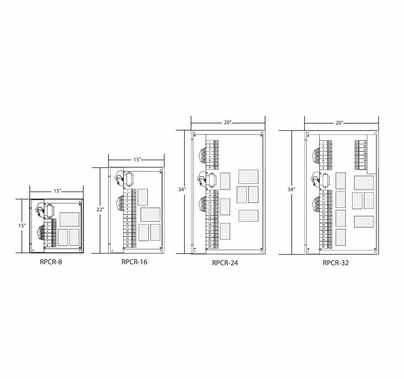

• Available in 6 different configurations housing 8-64 relays (8 and 32 relay models shown)

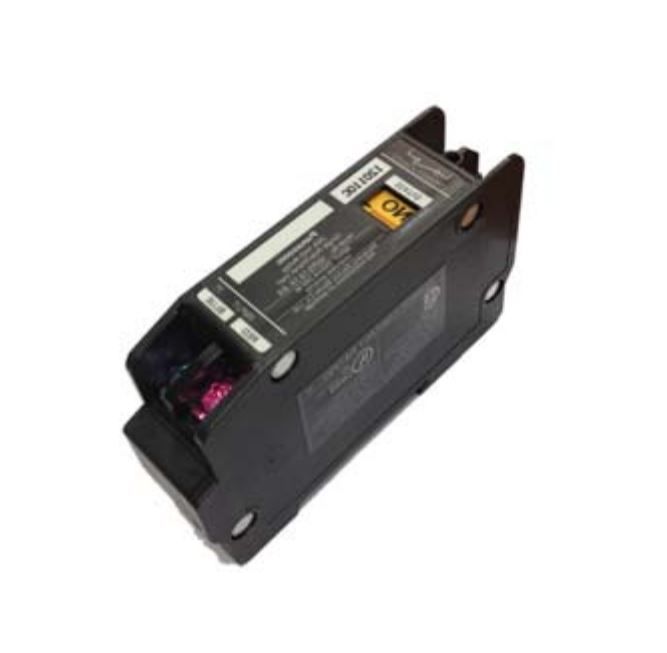

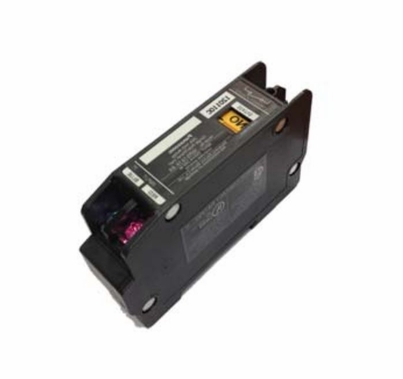

Panasonic Relay Specs

• Relay Model
• Description PAN-1P Single Pole HID Relay WR6161K-84
• UL Rating Electrical Life: Electronic Ballast Rated
  Output Contact Side

• General Use: 30 A 300 VAC
• Tungsten: 2400 W 120 VAC
• (Standard) Ballast: 20 A 300 VAC
• (Electronic) Ballast: 16 A 277 VAC
• Motor Starting , Single Phase: ˝ HP 110-125 VAC
  Auxiliary Contact Side

• General Use 1 A 125 VAC
• Performance (30,000 cycles): 60,000 operations
• Short Circuit Rating: 18,000 A 277 VAC
