PRODUCT DESCRIPTION
Mole LED Fresnel Junior 200w Tungsten Fixture w/ DMX
A relative newcomer to the landscape of Mole-Richardson Juniors, the 8? Junior Mole LED Fresnel (203mm) is a perfect blend of small size, plentiful beam spread and impressive output. Seamless integration with existing Tungsten Halogen Incandescent and drawing a maximum of 2 Amps.
Specifications
- Head: Type 8941 Tungsten 3200K
- Rating: 90-250 Volts AC, 50-60Hz, 200 Watts, 1-2 Amps Max.
DMX Standby Draw <.10 Amps Max.

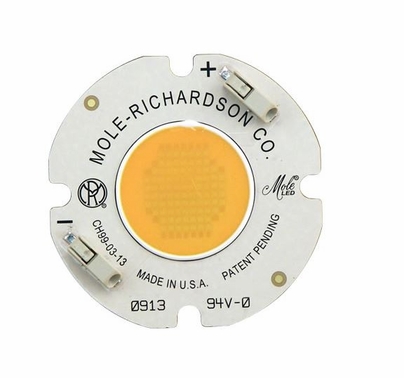

- Light Source: (1) 3200K 95CRI Tungsten LED
- Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor,
#18 AWG with NEMA 5-15 Edison
(Other plugs and wire lengths available upon request)
- Switch:
Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
- Fuse:
2 Amp Slow-Blow. Fuseholder in Trough
Dimming:
Flicker Free, Direct DC Dimming
On-Board Dimmer 100% -10%
(Minimal Color Shift)
DMX Dimmer 100% - 0%
(Minimal Color Shift)
- Control:
DMX512-A In and Out. Manual DMX Address Selector
- Condenser:
8
in (203mm) Borosilicate Glass Fresnel
- Beam Angle:
13? to 54? Variable Spot to Flood
(Includes Field)
- Focusing:
Rotating Knob on Front and Back
- Cooling:
Passive-Forced Air
- Construction:
Aluminum and Steel with Interlocking Channels
- Yoke:
Cast Aluminum w/Standard 1
1
/
8
in (29mm) Pin
Compliance:
RoHS. CE, UL, CSA Pending
- IP Rating:
30
- Finish:
Textured Black Powder Epoxy Coat.
(Other Colors Available)
- Size:
12 in/305mm(d) x 14 in/356mm(w) x 20
5
/
8
in/524mm(h)
- Head Weight:
14lbs/6.40kg
(Head Only)
16lbs/7.23kg
(Head with 25ft/7.6m cable)
