Mole 100W Tweenie LED Fresnel Daylight 4.5" Lens DMX

PRODUCT DESCRIPTION

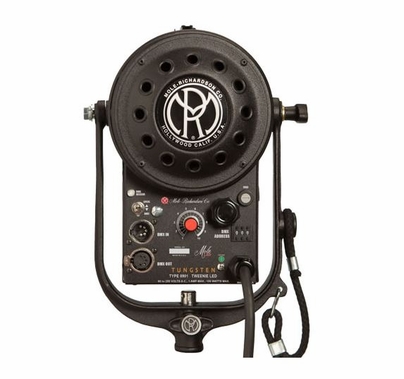

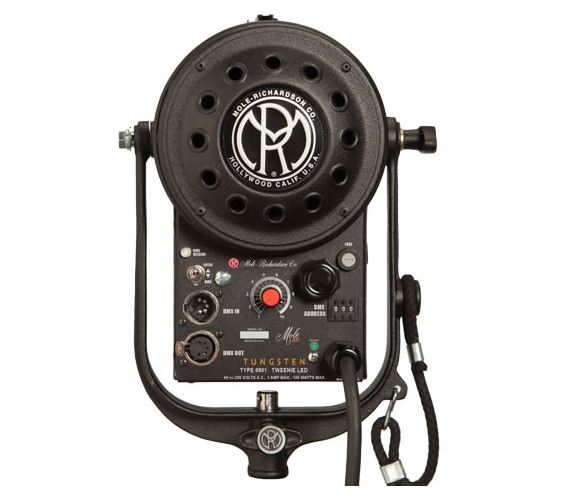

Mole-Richardson Tweenie 100W LED Fresnel Daylite Fixture

Pound for pound, it's everything you've come to expect from a Tweenie and so much more. Seamless integration with existing Tungsten Halogen Incandescent, similar performance and optics as other 4.5" (114mm) Mole Fresnels, and about 80% less power consumption.

Introducing the MoleLED Fresnels. A design familiar to generations of lighting professionals is now loaded with state of the art electronics and the latest LED chip on-board technology. These revolutionary fixtures use a proprietary Quantum Dot LED developed and produced by Mole to replicate film and television 3200K Tungsten or 5600K Daylight exactly.

• Head: Type 8911 Daylite
• Rating: 90-250 Volts AC, 50-60Hz, 100 Watts, 0.5-1 Amps Max. DMX Standby Draw <.05 Amps Max.
• Light Source: (1) - 100 Watt Mole-Richardson Quantum Dot LED 5600K 90CRI Daylight
• Cable: Attached 25 ft (7.6m) Type SO., 3 Conductor, #18 AWG with NEMA 5-15 Edison (Other plugs and wire lengths available upon request)
• Switch: Thru-cord Toggle in Cable, DMX or Local Toggle in Trough
• Fuse: 1 Amp Slow-Blow. Fuseholder in Trough
• Dimming: Flicker Free, Direct DC Dimming On-Board Dimmer 100% -10% (Minimal Color Shift) DMX Dimmer 100% - 0% (Minimal Color Shift)
• Control: DMX512-A In and Out. Manual DMX Address Selector
• Condenser: 4.5 in (113mm) Borosilicate Glass Fresnel
• Beam Angle: 22 degree to 56 degree Variable Spot to Flood (Includes Field)
• Focusing: Rotating Knob on Front and Back
• Cooling: Passive-Forced Air
• Construction: Aluminum and Steel with Interlocking Channels
• Yoke: Cast Aluminum w/Standard 5/8 in (16mm) Receiver
• Compliance: RoHS. CE, UL, CSA Pending
• IP Rating: 30
• Finish: Textured Black Powder Epoxy Coat. (Other Colors Available)
• Size: 8 in/200mm(d) x 9 in/229mm(w) x 16 in/406mm(h)
• Head Weight: 6lbs/2.72kg (Head Only), 8lbs/3.63kg (Head with 25ft/7.6m cable)
