PRODUCT DESCRIPTION

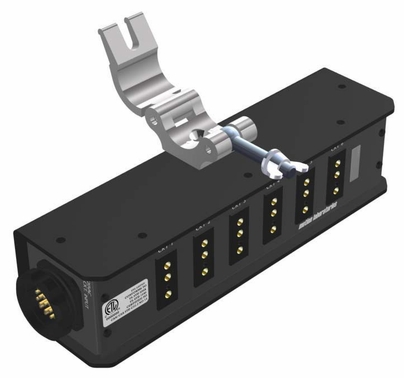

Motion Labs Non-Breakered Stringer Box, 19 Pin I/O X 6 Stage Pin. With Truss Mount
DESCRIPTION: Non-Breakered Stringer Box, 19 Pin I/O X 6 Stage Pin. With Truss Mount
- Dimensions: 17" Overall Length, 3.875" Over Width, 4.625" Overall Height
- Weight: 4.9lbs
- Input Voltage: 120 VAC 60Hz, Six Circuits @ 20A
Thru Unswitched Thru Connector
- Output Voltage: 6 Circuits, 120VAC, 60 Hz, 20A
- Construction: Shell Made from Boltaron 4335 Extruded Acrylic PVC Alloy Sheet, UL94 V-0 Rating, 1/4" Thick. Panels are .090 Aluminum, Black Anodized, Diamond Bit Engraving,
NEMA 1
- Breakers: None
- Listing: ETL Listed. Conforms to UL STD 1640, UL STD 508A,
Certified to CAN/CSA STD C22.2 No 14
CONNECTOR SPECIFICATIONS
- CONNECTORS I/O: CEEP Brand, Circular Style, 419AR, 19Pin, 25A, 400VAC.
Socapex and VSC Compatible, Aluminum Alloy, Black
Finish, UL
- CONNECTORS OUTPUT:
Marinco Brand, 20FR, Stage Pin, 125VAC, 20A, Black, UL
- FEATURES: Cheeseborough 2" Truss Mount Clamp
