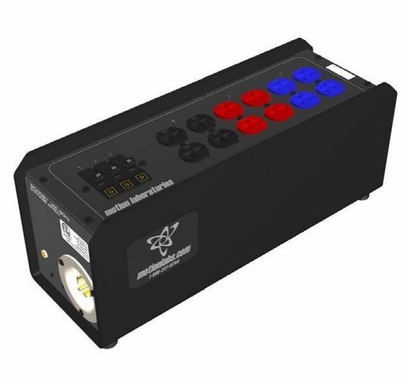

Motion Labs Breakered Stringer Box, Twist Lock L21-30 I/O X 6 Duplex Edison, Tri Colored.

PRODUCT DESCRIPTION

Motion Labs Breakered Stringer Box, Twist Lock L21-30 I/O X 6 Duplex Edison, Tri Colored.

DESCRIPTION: Motion Labs Breakered Stringer Box, L21-30 I/O X 6 Duplex Edison, Tri Colored.

• Dimensions: 17" Overall Length, 5.875" Over Width, 7" Overall Height
• Weight: 12lbs
• Input Voltage: 120/208Y VAC 3Phase 60Hz, 30A Thru Unswitched Thru Connector
• Output Voltage: 3 Circuits, 120VAC, 60 Hz, 20A, 2 Connectors per Phase, Color Coded: Black L1, Red L2, Blue, L3
• Construction: Shell Made from Boltaron 4335 Extruded Acrylic PVC Alloy Sheet, UL94 V-0 Rating, 1/4" Thick. Panels are .090 Aluminum, Black Anodized, Diamond Bit Engraving, NEMA 1
• Breakers: Square D Brand QOU Series, 3 X 20A 1P, Branch Rated
• Listing: ETL Listed. Conforms to UL STD 1640, UL STD 508A, Certified to CAN/CSA STD C22.2 No 14

  CONNECTOR SPECIFICATIONS

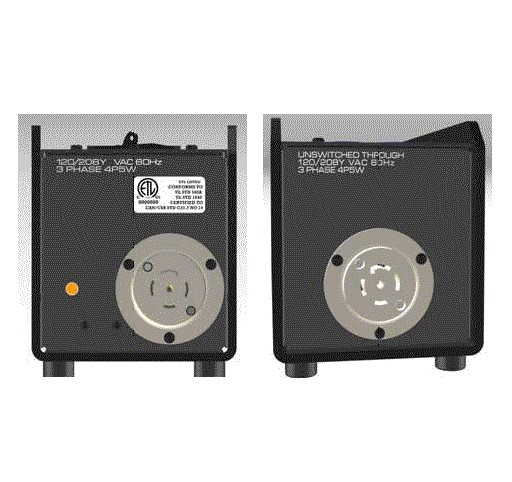

• CONNECTORS I/O: Hubbell Brand, NEMA L21-30 30A 3PH, Nylon, White. Inlet, HBL2815, Thru Outlet, HBL2816. UL/CSA
• CONNECTORS OUTPUT: Hubbell Brand, NEMA 5-20, Edison Duplex, 2X HBL 5352 BLK, 2X HBL 5352RED, 2X 5352 BLUE
• FEATURES: Orange Neon Indicator on Input
