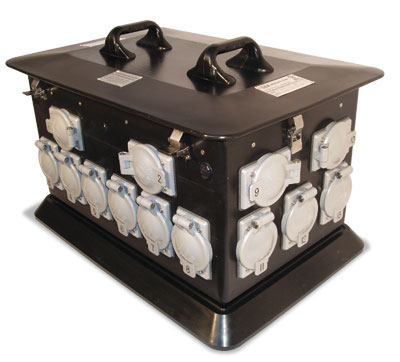

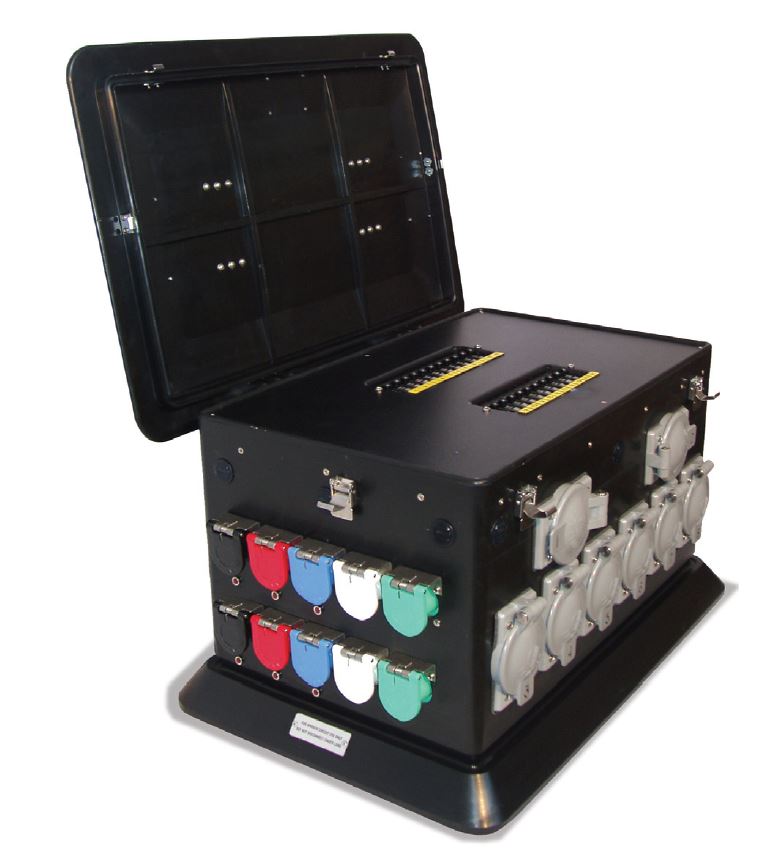

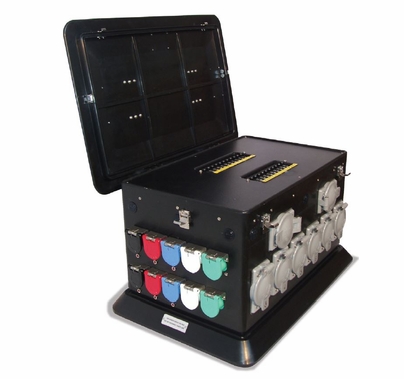

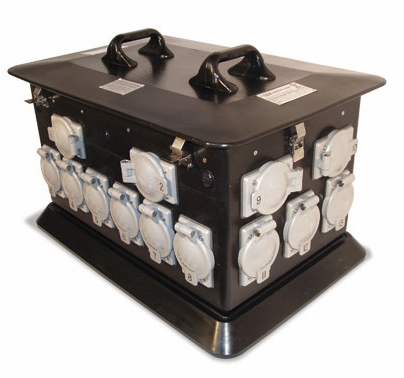

Lex Products 200A 3 Phase Power Station to NEMA TT-30 RV Receptacles, Feed Thru, Distro Box

PRODUCT DESCRIPTION

Lex Products 200A 3 Phase Power Station to NEMA TT-30 RV Receptacles, Feed Thru, Weather Resistant Electrical Distro Box

***These Items are Not in Stock and are Custom Built to Order. Please allow additional time.***

200A 3 Phase Feed Thru to (21) 30A RV Trailer Outlets

Description

200 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Power Station Enclosure, (1) set of (5) 16 Series Cam-type color-coded panel mount inlets to (21) NEMA TT-30, 30 Amp straight blade RV receptacles, feed thru, NEMA 3R Weather Resistant.

Markets Served

Live Events, Convention Centers, Sporting Events

Application

This box is used at events where portable trailers need to be powered, such as golf tournaments, autoraces, or fairs. The feed-thru allows multiple boxes set up over a wide area.

Features & Benefits

• Heavy-duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
• Compact for easy storage and convenient portability.
• Breakers located under hinged lid, enhancing safety.
• Elevated base keeps receptacles above ground level

• Rating: 200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
• Environmental Rating: NEMA 3R Weather Resistant
• Input: (1) set of (5) 16 Series Cam-type color-coded panel mount inlets
• Output: (21) NEMA TT-30, 30 Amp, 2 Pole, 3 Wire, 125 VAC straight blade RV receptacles
• Feed Thru: (1) set of (5) 16 Series Cam-type color-coded panel mount outlets
• Overcurrent Protection: (21) 30 Amp, Single Pole branch-rated circuit breakers
• Overall Dimensions: 27.5” L x 18.5” W x 18” H
• Weight: 65 lbs
