PRODUCT DESCRIPTION

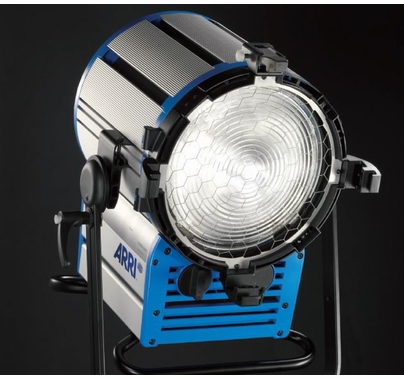

Arri D40 4000w HMI Fresnel Light System ALF & DMX
Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency are needed, ARRI TRUE BLUE D-Series Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, the rugged TRUE BLUE D-Series is ideal for all types of location lighting.
Following the introduction of the True Blue tungsten
lampheads, ARRI is proud to present four new products making up the True Blue Daylight series - all offering the same innovative features and award-winning design.
Building on the success of the industry-standard ARRI
Compact Fresnels, the new D5, D12, D25 and D40 have over 30 new improvements. With reduced weight,
compact size and maximum light output, the TRUE BLUE
Daylight series sets a new standard for professional lighting equipment.
Pressure die cast and extruded aluminium components have reduced the overall weight of the TRUE BLUE fixtures without any sacrifice in quality or durability. Many components now offer greater strength and resistance to corrosion.
ARRI’s cross cooling system reduces both lamp housing temperature and lens temperature, enabling the lampheads
to be operated at even a 90 degree tilt angle. Special air channels built into the aluminium extrusion direct a constant stream
of air around the Fresnel lens and into the lamphead, even when the light is pointing directly up or downwards.
At the heart of the TRUE BLUE concept is a redesigned
stirrup and improved tilt lock. The stainless steel friction disc locks the lamphead securely, even when heavy accessories such as large Chimeras are in use. To make balancing the lamphead even easier, the sliding stirrup mounting can be adjusted to counterbalance these front-mounted accessories. The new extruded aluminium stirrup is stronger, lighter and less bulky, but still permits full fixture rotation; its soft contour also makes the lamphead more comfortable to carry. Improved barndoors are stronger and less susceptible to bending, with a new hinge design that maintains constant, easily adjusted tension.
Routine maintenance and repair are easier with fast, simple access to all internal components: the complete igniter, for example, can be changed within ten minutes. Cleaning a TRUE BLUE lamphead is rendered an effortless task by its smooth lamp housing surfaces. ARRI has redesigned these new lampheads down to the smallest detail, offering lighting professionals better choices for location and studio work.
Arri D40 System Includes:
- D40 4,000W HMI Head w/ 12" Lens (38.6 lbs)
- Four Leaf Barndoor (5 lbs)
- Filter Frame (1 lb)
- 50' Head / Ballast Cable (21 lbs)
- Electronic Ballast 2500W/4000W w/ ALF, DMX, 120/220V, 50/60Hz (50 lbs)
Technical Data
- Lamphead Type: Fresnel, 4000 W
- Reflector Type: Spherical specular high purity aluminium
- Lamp Type: Metal Halide 4000 W/SE
- Power Consumption: 4000 W
- Voltage Range: 200 V
- Lamp Base: G38
- Dimmability: Yes, 50 - 100% via ARRI Ballast Unit
- Cable Options: VEAM, Schaltbau (GTV-Norm)
- Correlated Color Temperature: 6000 K
- Beam Angle: 6.5 - 61 degrees
- Product Weight: 17,5 kg / 38.6 lbs.
- Shipping Weight: 22,0 kg / 48.5 lbs. (incl. pallet)
- Product Size (HxWxL): 727 x 534 x 403 mm / 28.6" x 21.0" x 15.9"
- Shipping Size (HxWxL): 770 x 600 x 600 mm / 30.3" x 23.6" x 23.6"
- Lens Diameter: 300 mm / 11.8"
- Accessory Diameter: 400 mm / 15.75" (Scrim)
- Barndoor Size: 413 mm / 16.26"
- Mounting: Spigot 28 mm / 1 1/8" (1.1")
- Protection Class: I/IP 23
- Certifications: CE, CB, GS, cNRTL
***Please Note: Electronic Ballast Power Cable Requires Electrical Connector***
HMI Bulb / Lamp NOT Included
