Arri M8 800W HMI Daylight Head L1.37200.B

PRODUCT DESCRIPTION

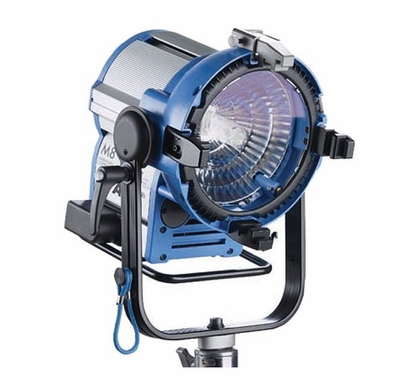

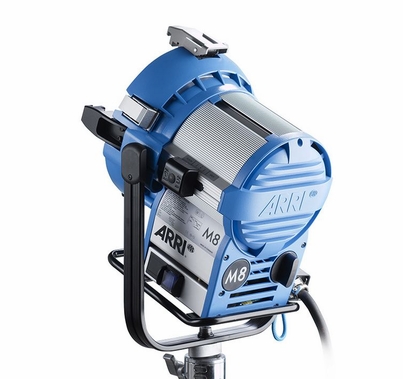

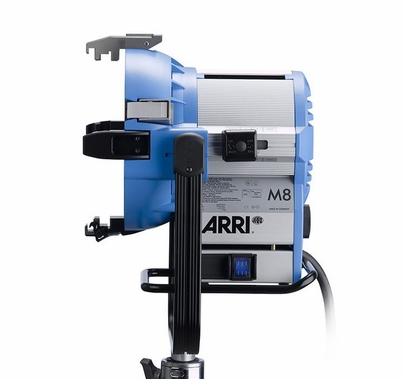

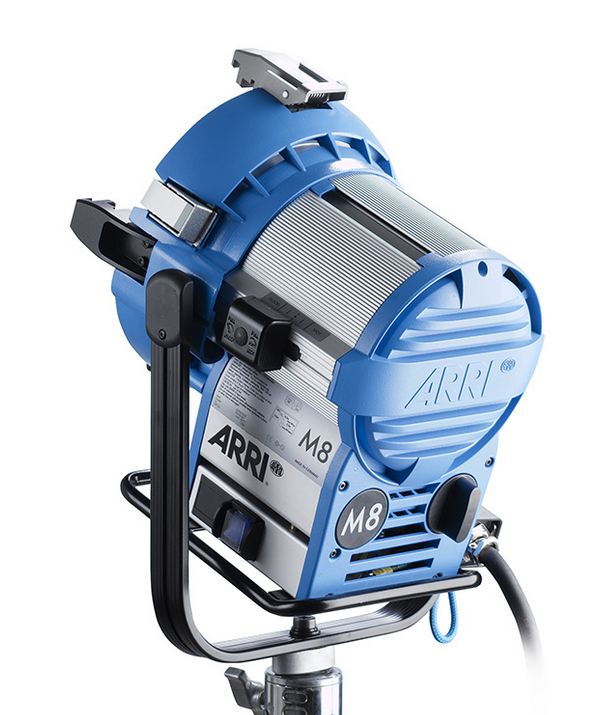

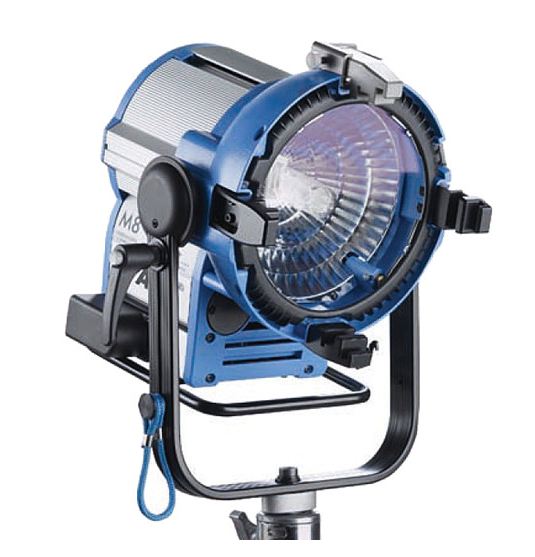

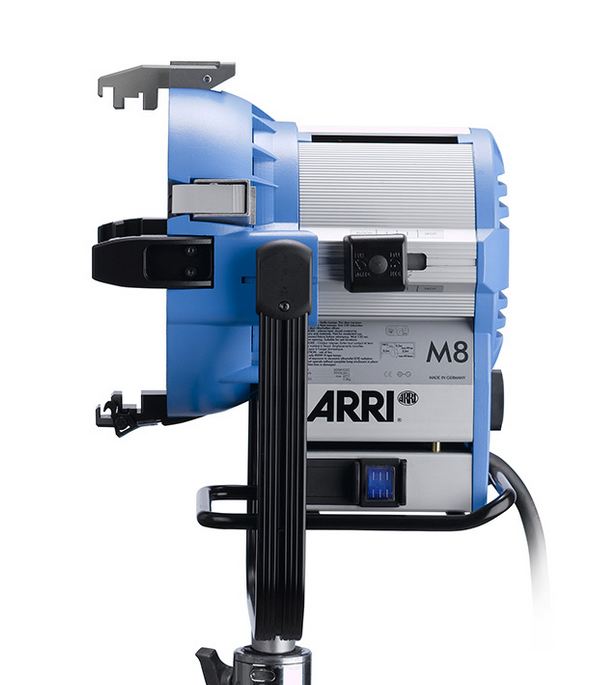

Arri M8 800W HMI Daylight Head Fixture

The Arri M8 is the latest and smallest lighting fixture in ARRI's highly successful M-Series of HMI lampheads. Like the rest of the M-Series, the M8 is equipped with MAX Technology, a unique, patented reflector design that unifies the advantages of a Fresnel and a PAR fixture.

The combination of an open face design and the unrivalled efficiency of the MAX reflector makes the M8 exceptionally bright; in fact, the light output produced by its 800 W lamp comes close to the output from a 1,200 W Fresnel or PAR (with lens). The unit can be focused between 15 and 62 degrees just by turning the focus knob, producing a remarkably even light field and a crisp, clear shadow. By eliminating the need for bulky, easily breakable spread lenses, the M8 will speed up workflows on set.

Features

• Lensless MAX Technology: easy to use
• Light output comparable to 1,200 W fixture
• Smallest lamphead with MAX reflector
• Highly mobile for a wide range of uses
• Focusable between 14.7 degree and 62 degree
• Cross cooling allows safe operation even at 90 derees tilt
• Uses existing 245 mm / 230 mm accessories of ARRI TRUE BLUE D12 & Chimera
• Uses existing 575/1,200/1,800 W cables
• Possibility to operate at 1,000 Hz
• Protection class IP23
• Tilt locks to hold heavy accessories stable

Specs:

• Weight: 17.2 lbs. (7.8 kg)
• Reflector: MAX reflector made of high purity aluminium
• Lampholder: G22
• Mounting: 1 1/8" (29 mm) stand mount
• Ballast: Not Included,See ARRI Electronic Ballasts
