PRODUCT DESCRIPTION

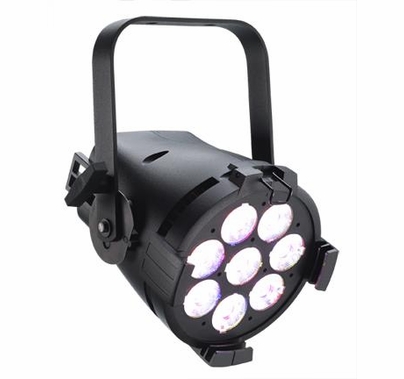

ETC ColorSource LED Par Light
The ETC ColorSource LED Par is an affordable, high quality, true color led par fixture. By adding Lime LED Emmitters and Double Red, the ColorSource provide a greater range of color. So easy to use, the ColorSource LED can be controlled with just the onboard user interface or a lighting console. Get rich saturated colors with the ETC experience. Colors that stay true as the fixture is dimmed. Don't settle for less!
Features
- Easy-to-use, simple RGB control adds lime automatically when needed
- RDM capability
- Power in and thru with PowerCON connectors
- DMX in and thru
- Low-noise fan operation
- Droop compensation for consistent output
- Optically calibrated
- Homogenized optics
- Ships with PowerCON power input lead with your choice of input connector
- Uses Desire series D40 7.5" Diffusers and standard 7.5" accessories, sold separately
- Clamp and safety cable sold separately
Specs
GENERAL
- 8 RGB-L chipset color-mixing wash luminaire
- ETL Listed to UL1573, the standard for stage and studio
lighting units
- IP20-rated for indoor use
- Power- and DMX-in/thru connections for easy setup
- Simple 7-segment, three-button interface with easy access to
12 customizable presets and five sequences
PHYSICAL
- Rugged, die-cast, all-metal housing
- Easy-access slots for secondary lenses and standard 7.5 inch PAR accessories
- Available in black (standard), white or silver (optional) or
custom colors (contact factory)
- Hanging yoke included
ELECTRICAL
- 100VAC to 240VAC 50/60Hz universal power input
- PowerCon in and thru connections
- Up to nine luminaires (15A max) may be linked via power thru
connector (10 luminaires total per circuit) when used with
R20 relay module or Unison? Echo Relay Panel. Consult
breaker trip curves when used with other equipment.
Requires power from a non-dimmable source
- Inrush
- 120V: 35A (First half-cycle)
- 240V: 49A (First half-cycle)
Wt: 8.3 lbs
