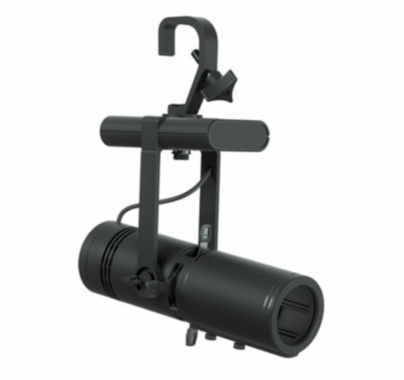

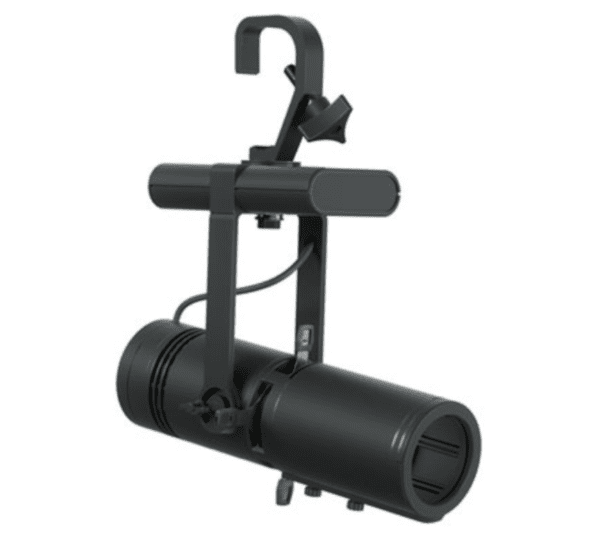

ETC Irideon FPZ LED Framing Projector 3000K 90 CRI Gallery Portable | Black

PRODUCT DESCRIPTION

ETC Irideon FPZ LED Framing Projector 3000K Gallery Portable

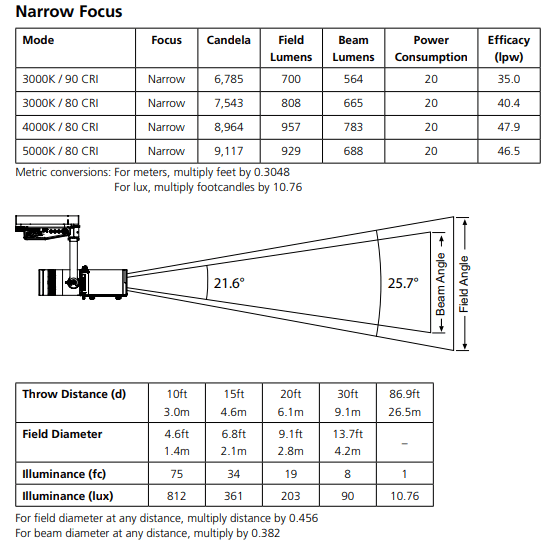

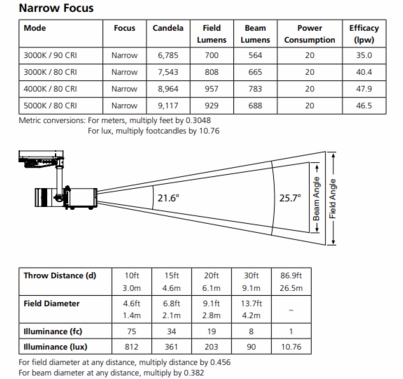

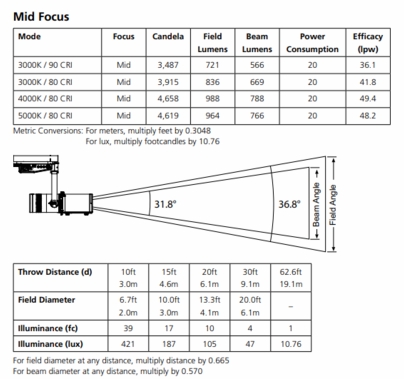

The ETC Irideon FPZ LED Framing Projector 3000K Gallery Portable is an LED framing projector with zoom optics that provides the highest quality beam, perfect for precise control lighting on film or tv set. This compact Leko type light provides 75 foot candles at 10ft, with a 4.6ft beam diameter. Great for lighting set pieces and projecting gobos. The compact design and high output works as a good solution for ENG location lighting. Have a studio with low ceilings? The ETC Irideon LED is the answer. The Gallery version with a single CREE LED provides 3000K Tungsten color temperature with a CRI of 90+. The Irideon FPZ features a lockable 3-plane shutters, zoom optics 25-50 degrees, and the ability to dim using DMX with RJ45 connectors. The Irideon FPZ puts out over 7800 lumens, 33% brighter than Source Four Mini LED. Works with glass or metal gobos, logos.

APPLICATIONS

• Film Sets
• TV Studios
• Location Lighting
• Museums
• Retail stores
• Restaurants
• Hospitality/Lobbies
• Theatres

FEATURES

• Rugged fixture body

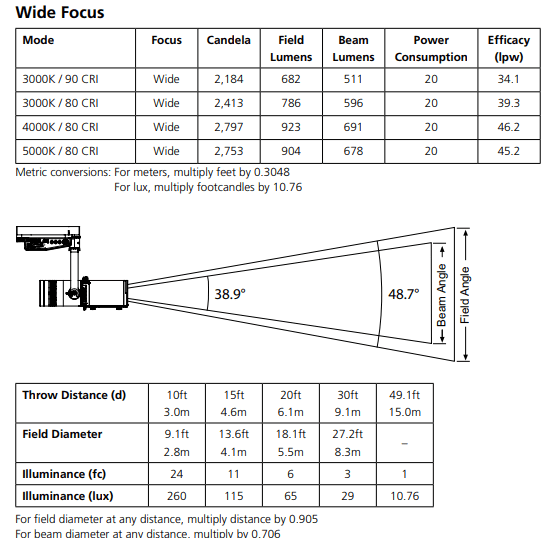

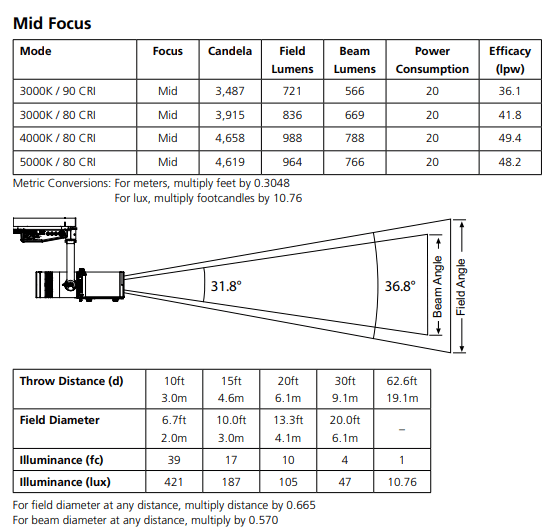

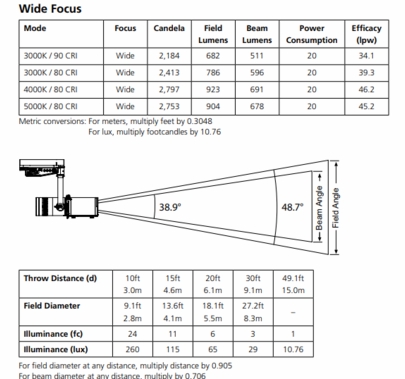

• 25-50 degree zoom optics
• Uniquely efficient optical system
• Three-plane shutters
• Built-in intensity trim with DMX
• Dimming to less than 1% of maximum output

PHYSICAL

• A380 grade, die-cast aluminum construction
• Finished in fine-texture, high-temperature, powder-coat paint
• Durable steel yoke
• Tool-free tilt and beam adjustment
• Locking, A301 grade stainless steel, full hard shutters in a triplane assembly, 0.40mm - Rotating shutter assembly support ±175° rotation
• Captive accessory slot for E-size pattern holder (included) - 37.5mm with a 25.4mm image area
• High-impact resistant, thermally insulated knobs and shutter handles
• Magnetically held media holder accepts gel and dichroics up to 1.75mm thick
• IP20 rated

FPZ Portable Model

• Color matched, medium c-clamp mounting for pipe-mount installations.
• DMX in and thru via RJ45 ports on the included driver box
• Available accessory kit for Unistrut mounting
• 6’ power cable with NEMA 5-15P connector included
• DMX or locally dimmed

ELECTRICAL

• Power consuption at full intensity: 20W typical, 24W max
• Compliant with ANSI DMX and Remote Device Management (RDM) standards
  - ANSI E1.11-2008
  - ANSI E1.20-2010

Weight: 4.25 lbs

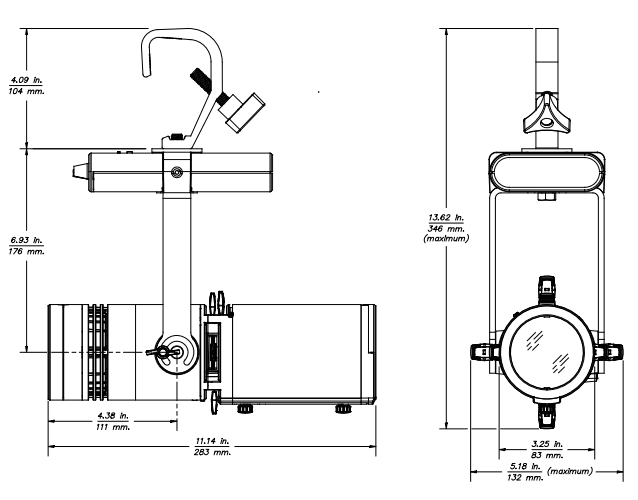

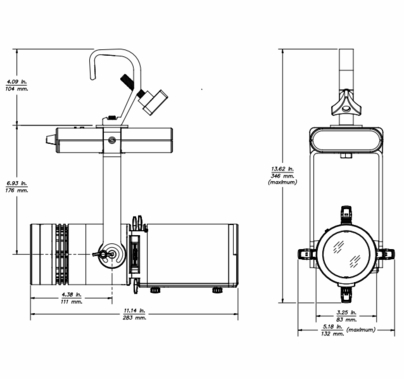

Dimensions: 13.62 x 5.18 x 11.14 inches
