PRODUCT DESCRIPTION
Lex 100 Amp 3 Phase Pagoda to L21-20 Receptacles
100A 120/208 VAC, (1) Set of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (5) NEMA L21-20 Locking Receptacles, Pagoda
Features & Benefits
- This box may be powered from a generator, a panel or a larger distribution box
- This distribution box can be used at outdoor events to provide 20 Amp, 3-phase locking receptacle power
- The locking receptacles help ensure positive connection and prevent disconnecting under load
- The receptacles can be used to power lights, effects and audio equipment
- Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

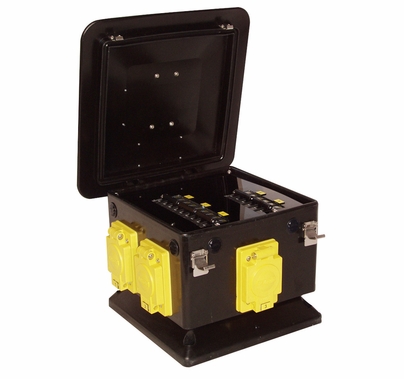

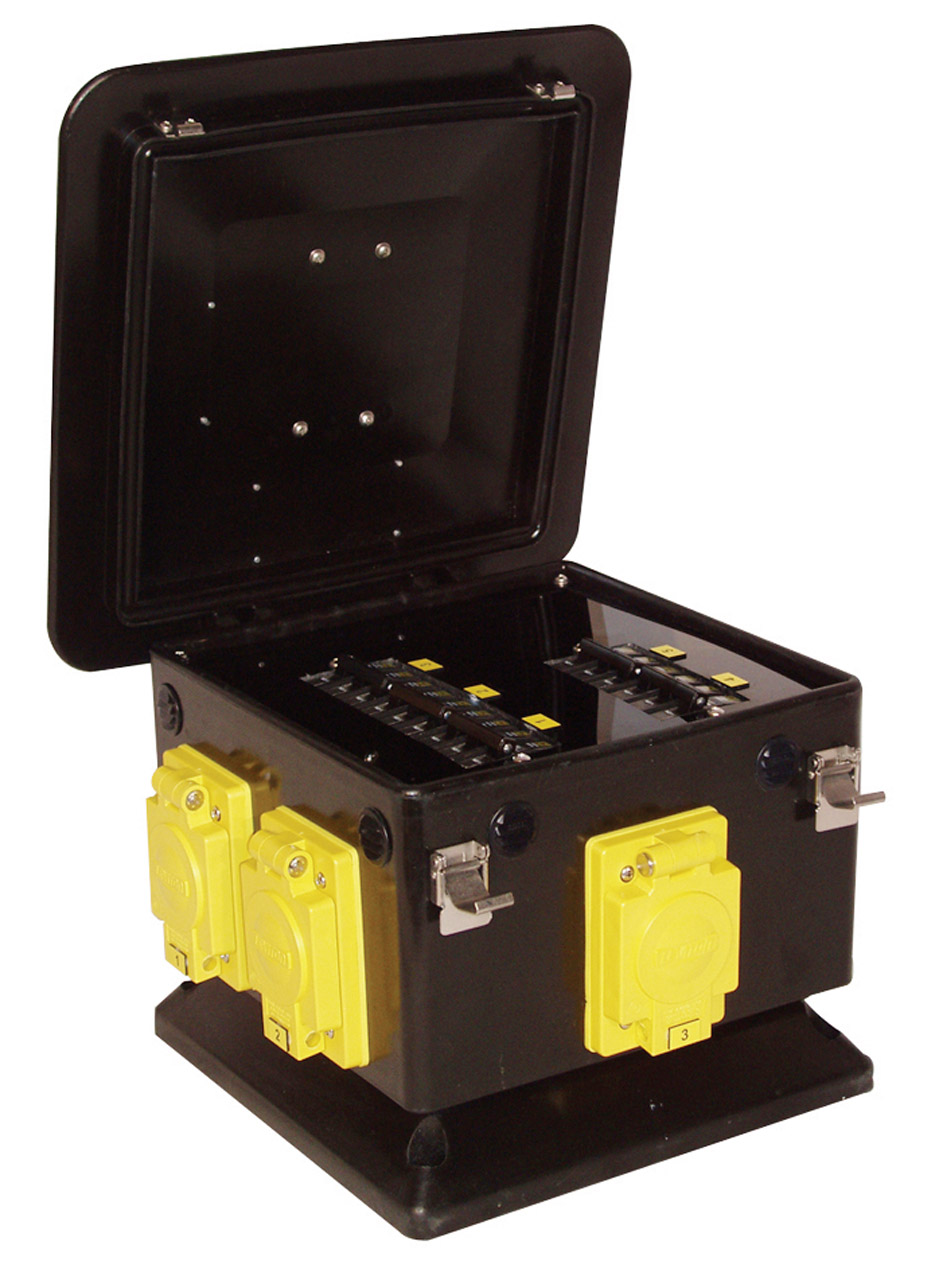

- Circuit breakers are mounted under hinged lid for enhanced safety
- Stackable and compact for easy storage and portability
- Elevated base keeps receptacles above ground level
Markets Served
Live Events, Convention Centers, Industrial
Technical Information
- Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
- Environmental Rating: NEMA 3R (Weather Resistant)

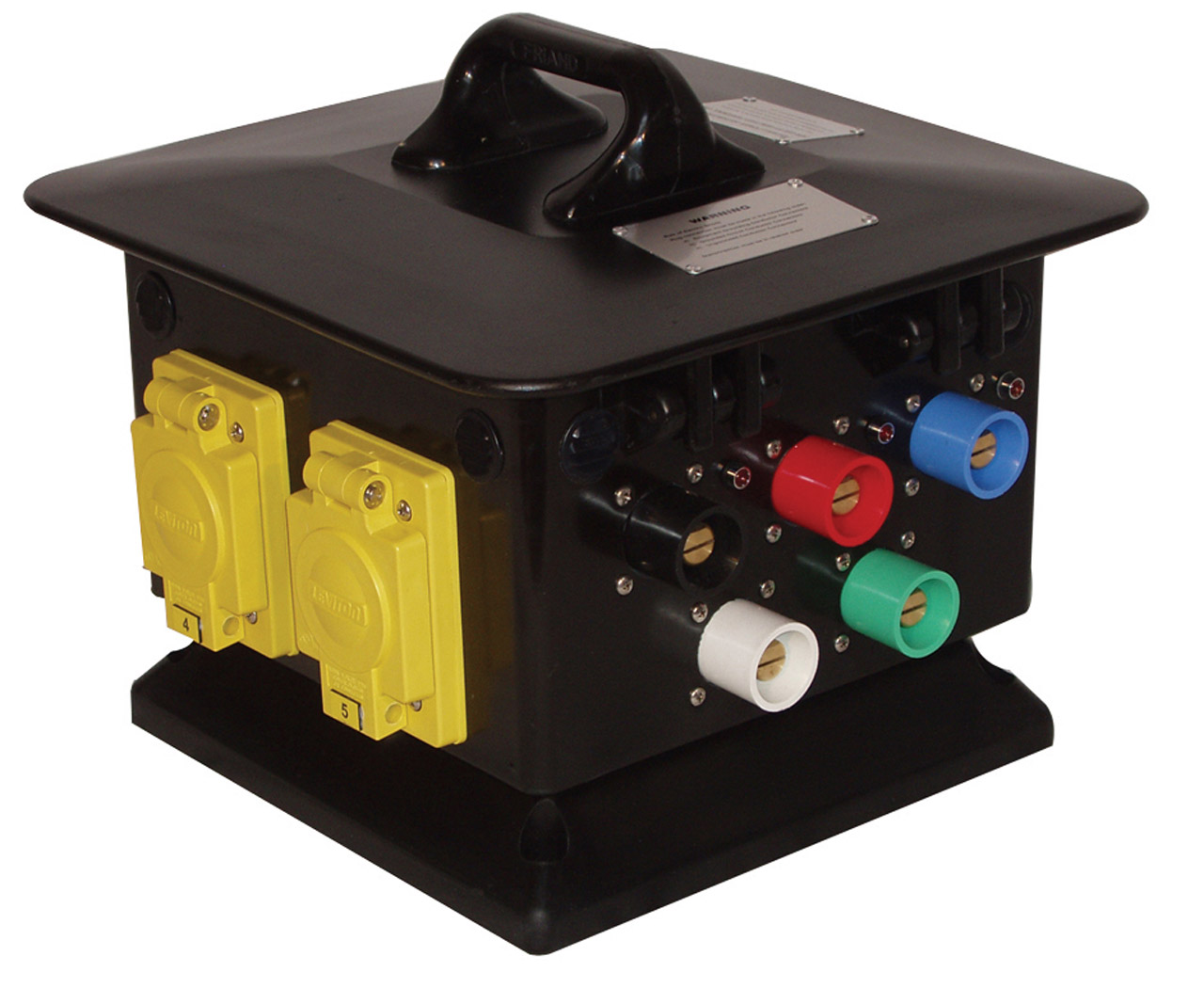

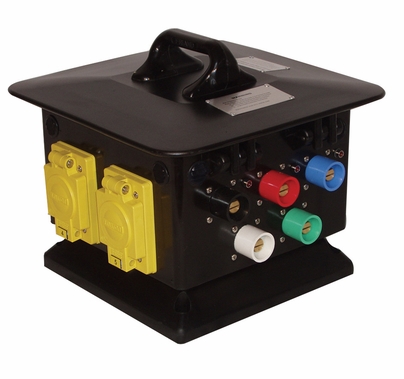

- Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, cover doors, panel mount
- Output: (5) NEMA L21-20, 20 Amp, 4-Pole, 5-Wire, 120/208Y VAC, locking receptacles, cover doors, panel mount
- Feed Thru: None
- Main Breaker: None
- Overcurrent Protection: (5) 20 Amp, 120/208Y VAC, three pole, hydraulic magnetic, branch-rated circuit breakers
- Enclosure Type: Pagoda
- Overall Dimensions: 14.25"L x 14.25"W x 14.15"H
- Weight: 32.0 lbs
- Agency Approval: cULus Listed
