PRODUCT DESCRIPTION
Lex 50 Amp Terrapin Station II T2-A2-6A1E L6-30 Locking to (6) 20A GFCI Edison Duplex Straight Blade | Feed Thru
Terrapin Station II Enclosure, 50A 125/250V Inlet and Feed Thru, (6) L520 GFCI Duplex Receptacles and (1) L630 Locking Receptacle, Type 3R. California Style Input.

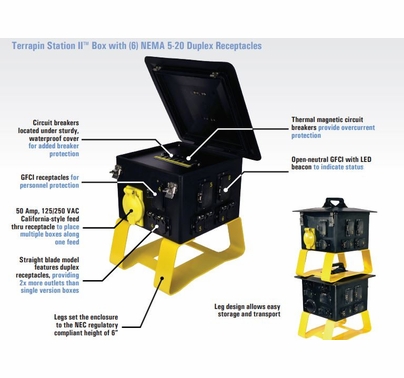

Features & Benefits
- Meets UL, NEC and OSHA requirements for events and generator rental
- Meets OSHA Regulation 20 Part 1926, Subpart K standards for open-neutral GFCI protection for enhanced safety
- Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion for years of trouble-free service versus painted metal

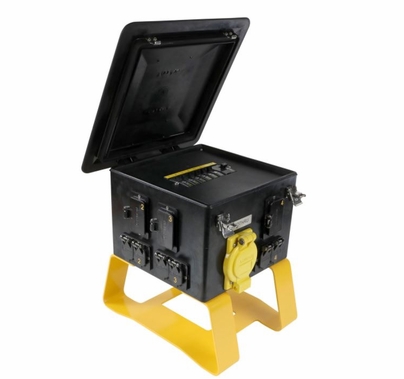

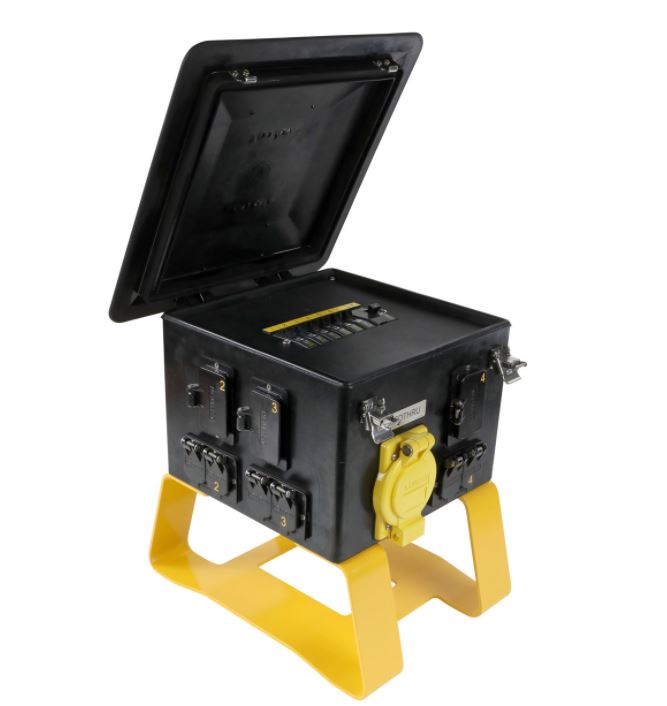

- Thermal magnetic circuit breakers are located under a heavy duty rubber, waterproof, self-closing lid for enhanced breaker protection
- Weather resistant GFCI protection helps to prevent unsafe operating conditions and nuisance tripping
- GFCI module possesses LED beacon to indicate device status
- Locking receptacles provide secure connections that prevent accidental separation
- cULus Listed and TYPE 3R Rainproof for outdoor use
- Feed thru feature allows multiple boxes to be placed along one feed
- Spring-loaded covers protect receptacles and inlets from dirt and moisture intrusion
- Lightweight and compact for easy portability and storage
- Heavy-duty aluminum legs position the box at the NEC regulatory height of 6 inches while allowing for storage and transport stacking

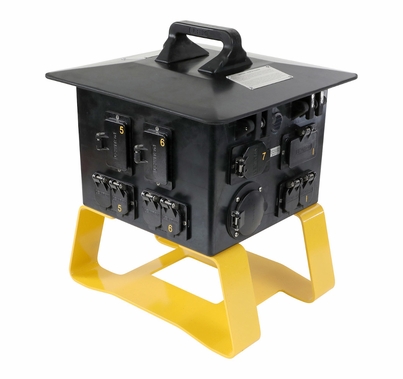

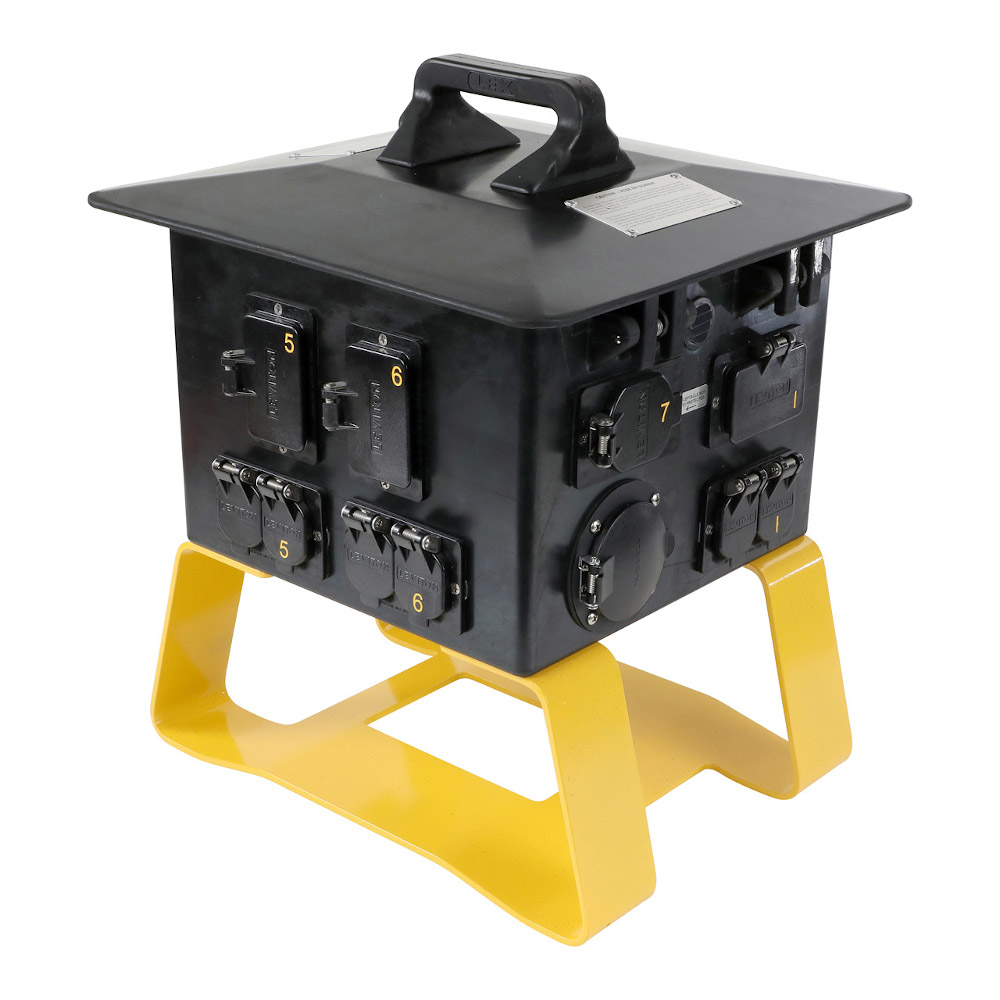

- Molded handle enhances portability while improving stack ability of multiple units
Markets Served
Electrical Distribution, Maintenance, Shipbuilding, Generator Rental, Construction, Outdoor Events, Shelters
Technical Information
- Rating 50 Amp, Single Phase (H, H, N, G), 3 Pole, 4 Wire, 125/250 VAC
- Environmental Rating NEMA Type 3R (Weather Resistant)
- Input (1) 50 Amp, 3-Pole, 4-Wire, 125/250 VAC, California-style locking receptacles
- Output (6) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 125 VAC, duplex receptacle, panel mount, GFCI open-neutral protected; (1) NEMA L6-30, 30 Amp, 2-Pole, 3-Wire, 250 VAC locking receptacle
- Feed Thru: Yes
- Overcurrent Protection (6) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers, (1) 30 Amp, 250 VAC, double pole, hydraulic magnetic, branch-rated circuit breaker
- Enclosure Type: Terrapin Station
- Dimensions 14.25"L x 14.25"W x 17.50"H
- Weight 29.0 lbs.
- Agency Approval: cULus Listed
