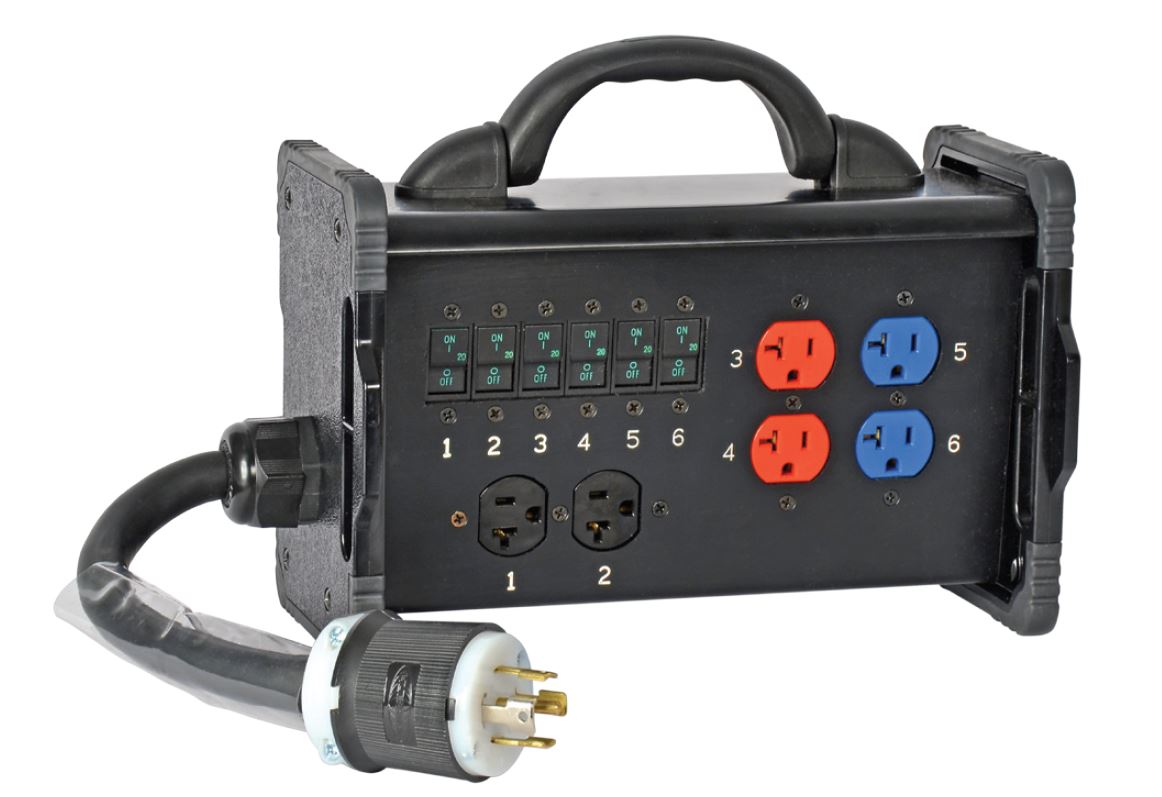

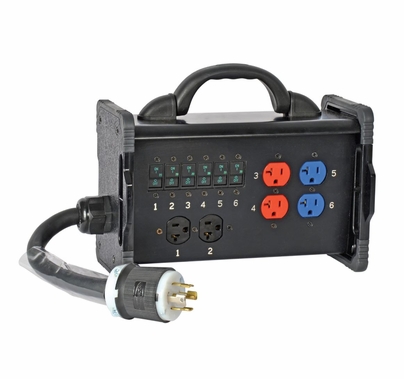

Lex 30 Amp L21-30 Bento Box with Tail Input to NEMA Receptacles

PRODUCT DESCRIPTION

Lex Bento Enclosure, L2130 Tail Mount Plug, (3) 5-20 Duplex Receptacles split for (6) 20A Circuits, Type 1 | BNB3-3B

Bento Box: 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC, Bento Enclosure, NEMA L21-30, 30 Amp locking plug on 12 inch 10/5 SOW-A tail to (3) NEMA 5-20, 20 Amp color-coded duplex receptacles split wired for (6) 20 Amp circuits, NEMA 1 Indoor

Markets Served

Convention Center, Concert Touring, Theatrical and Motion Picture, Industrial

Application

Fed from 30 Amp power, this box provides NEMA 5-20, 20 Amp duplex receptacles for lights, audio equipment and tools for a wide range of applications.

Features & Benefits

• Hydraulic magnetic circuit breakeres help prevent nuisance tripping at higher temperatures
• Stackable and compact for easy storage
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• Circuit breakers are mounted flush for easy access and circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces

Specifications

• Rating: 30 Amp, 3 Phase (H, H, H, N, G), 4 Pole, 5 Wire, 120/208Y VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) NEMA 21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A tail
• Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles split wired for (6) 20 Amp circuits
• Feed Thru: None
• Overcurrent Protection: (6) 20 Amp hydraulic magnetic branch-rated circuit breakers
• Dimensions: 11.5" L x 5.9" W x 7.6" H
• Approximate Weight: 6.5 lbs.
• Agency Approvals: UL and cUL Listed - Approved for use in the U.S. and Canada
