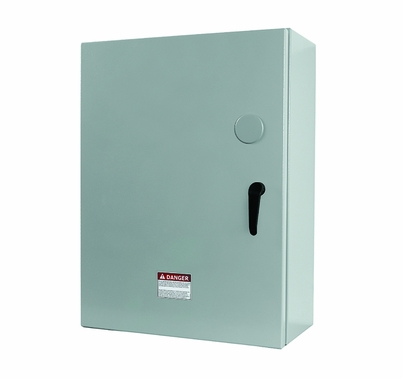

Lex 400A 3 Phase Power Input Panel Exterior Generator Hook Up 120/208 VAC NEMA 3R

PRODUCT DESCRIPTION

Lex 400A 3 Phase Power Input Panel Exterior Generator Hook Up 120/208 VAC NEMA 3R

400 A, 3 Phase, 120/208 VAC, Male Cams (black, red, blue, white, green) Phase Rotation, 2 Wire Stop/Start Terminals, Kirk Key Provision, NEMA 3R Weatherproof, aluminum housing

Description

400 Amp, 3 Phase, 120/208 VAC Power Input Panel. UL Listed NEMA Type 3R for outdoor use. Power Input panels provide a safe, convenient and economical way to connect temporary emergency power from portable generators to a building, in conjunction with a transfer switch.

Markets Served

• Industrial
• Generator Rental
• Construction
• Disaster Relief

Application

Power Input Panels are generally permanently mounted to the outside of a building. It has to be located so that the associated portable generator is not near any HVAC air intakes for the facility that might draw in the generator exhaust fumes. The portable generator is connected to the Power Input Panel using 4/0 feeder cable with Cam-type Series 16 connectors. The Power Input Panel is permanently connected to a transfer switch (not supplied by Lex) that is used to switch the building electrical supply from domestic power to the portable generator. A transfer switch must be used to switch the building power between the domestic power supply and the generator for safety and to meet NEC requirements.

Typical Uses

Typical applications include:

• Gas/Service Stations
• Convenience Stores
• Hardware Stores
• Department Stores
• Pharmacies
• Emergency Services
• Banks/ATMs
• Housing complexes
• Publically Traded Companies (per Sarbanes-Oxley Act)
• Security Firms

Features & Benefits

• PowerGATE™ Input Panels are fully listed to UL 1008 for outdoor use

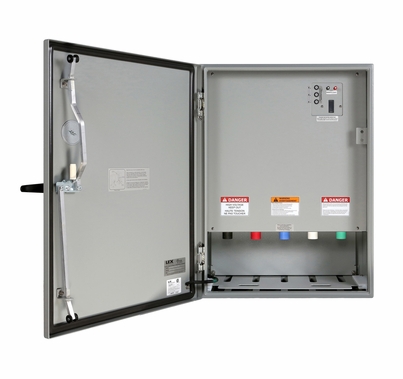

• Dead front panel covers all exposed electrical parts for added safety

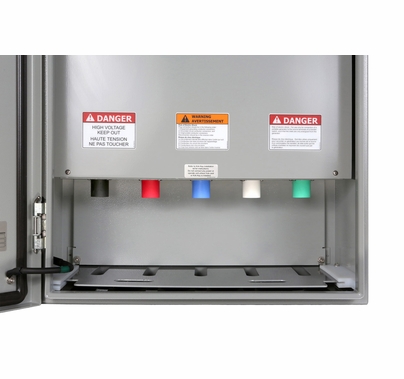

• Industry standard Cam Type devices save crucial time in emergency situations
• Low profile enclosure is 11.5 inches deep allowing the cables to drape downward for lowest profile against wall
• Padlock handle prevents unauthorized access
• Reduce cable theft with tamper proof design
• 2 Wire Remote Start Terminals allows for remote control of the stand by generator

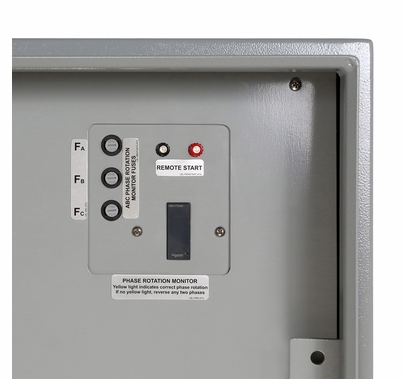

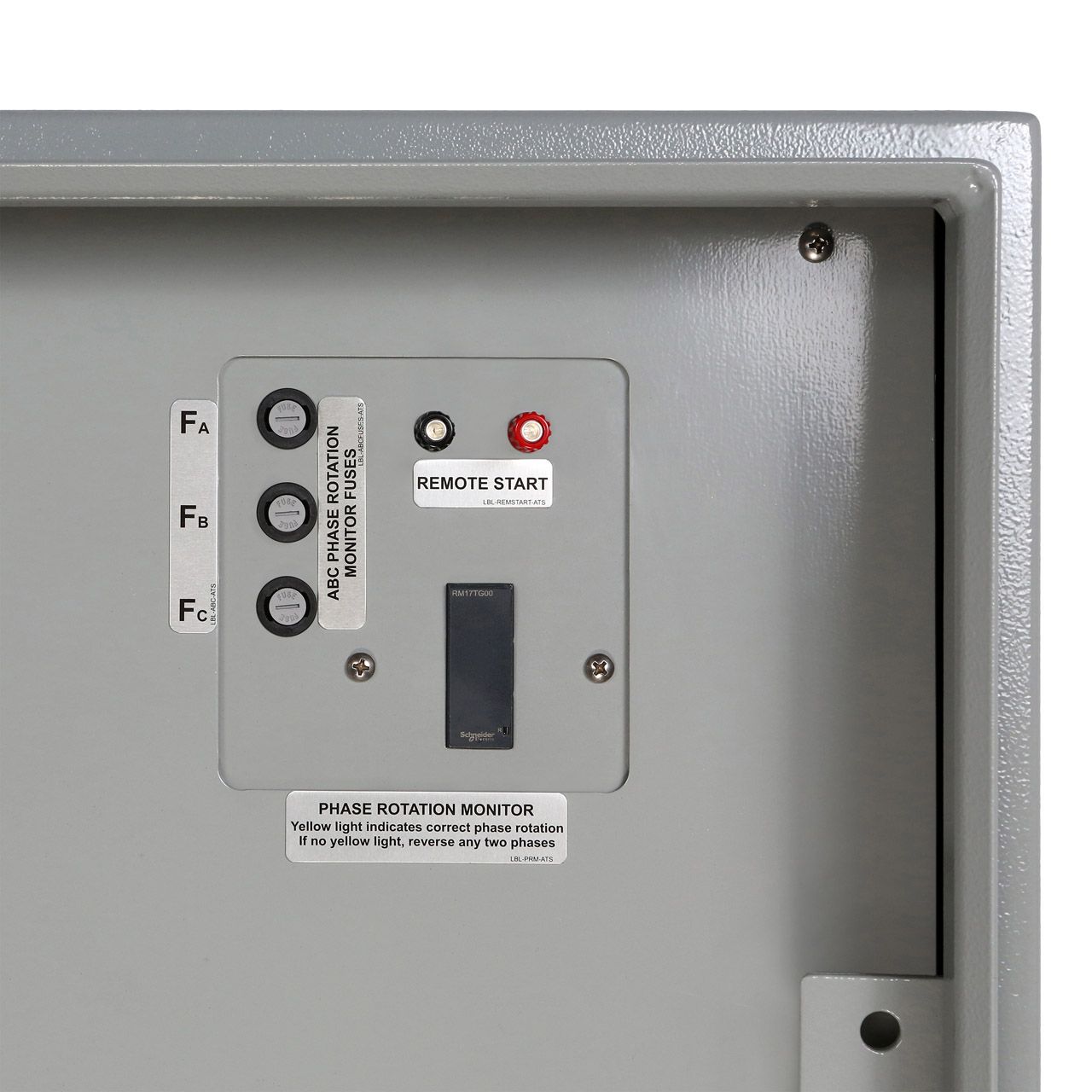

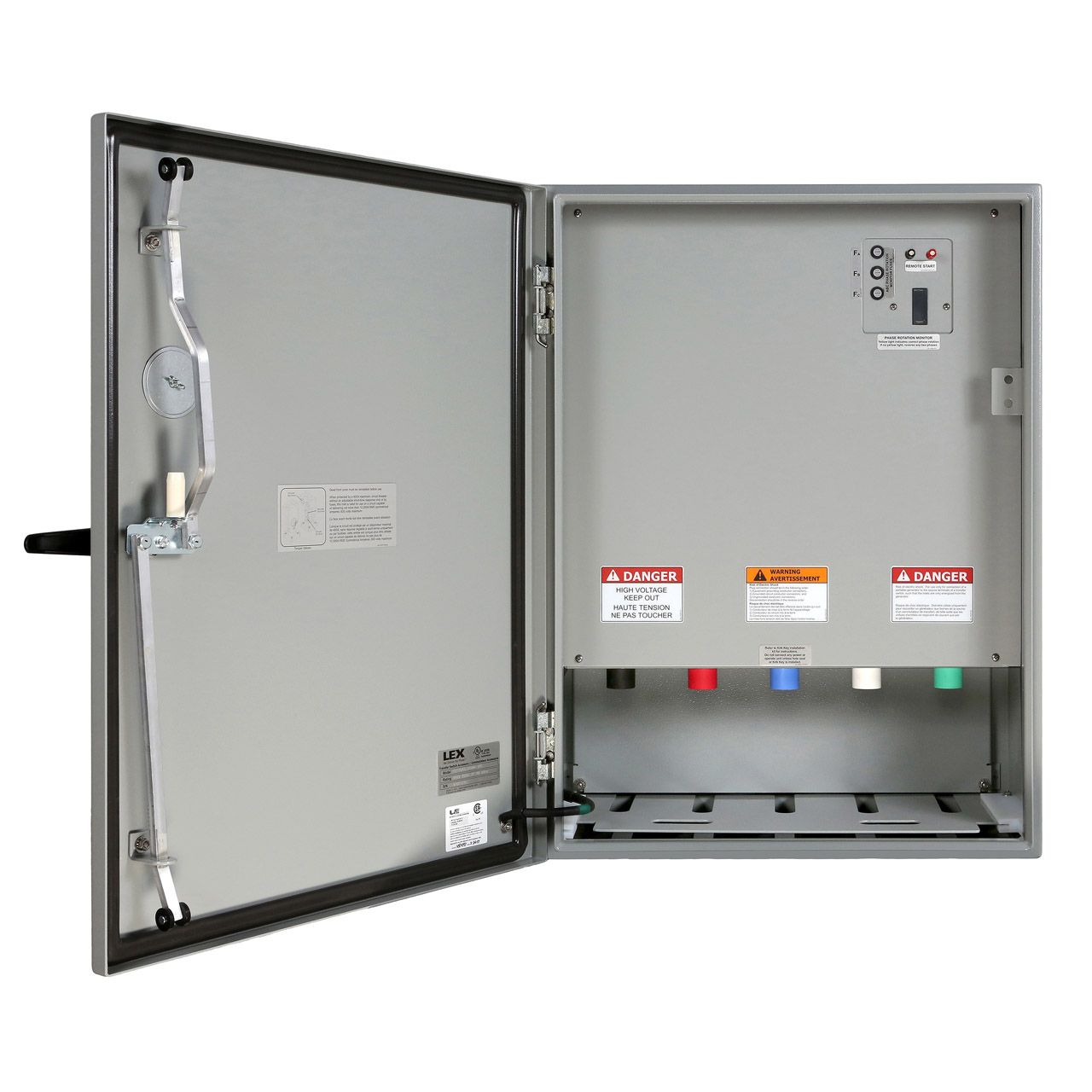

• Phase rotaion monitor; Quickly monitor the total loss of one or more phases and synchronization of phases

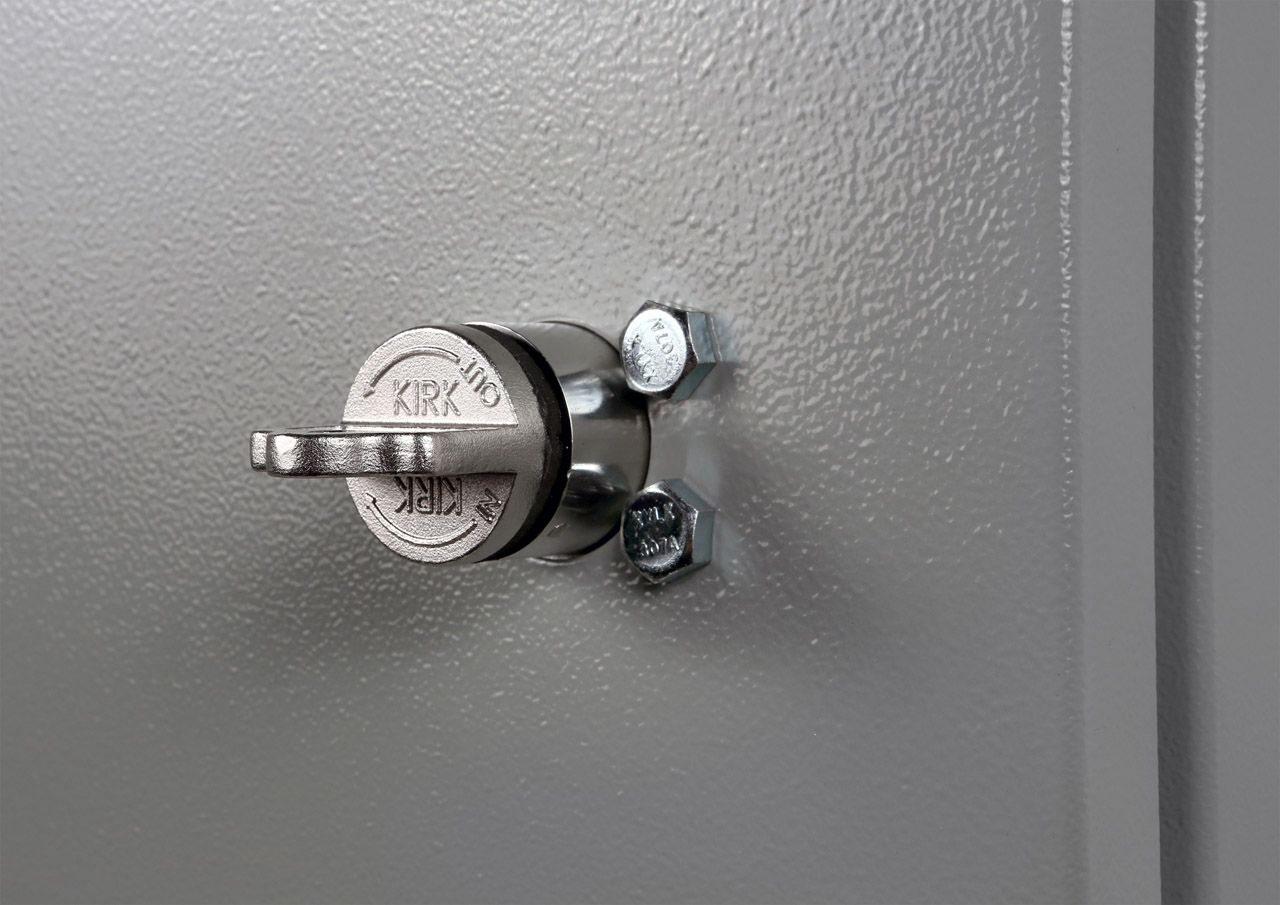

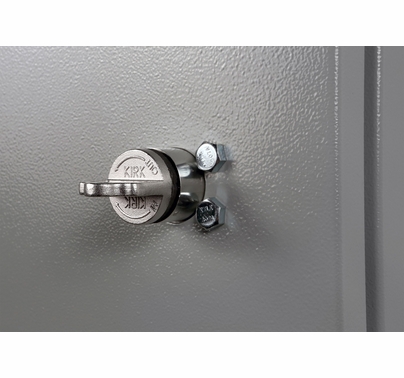

• Kirk Key Provision allows for installation of a Kirk Key Type D Interlock to prevent two sources of active power at a time

Specifications

• Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 480 VAC MAX
• Environmental Rating: NEMA Type 3R (Outdoor Use)
• Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, Black, Red, Blue, White, Green, (H,H,H,N,G), panel mount inlets
• Output: (1) set of (5) Dual Port Aluminium Lugs Wire Range: 600 MCM - #2 AWG, 600V
• Feed Thru: None
• Overcurrent Protection: None

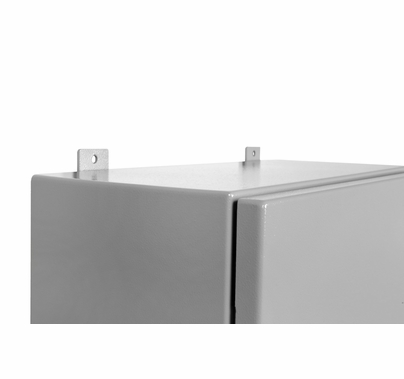

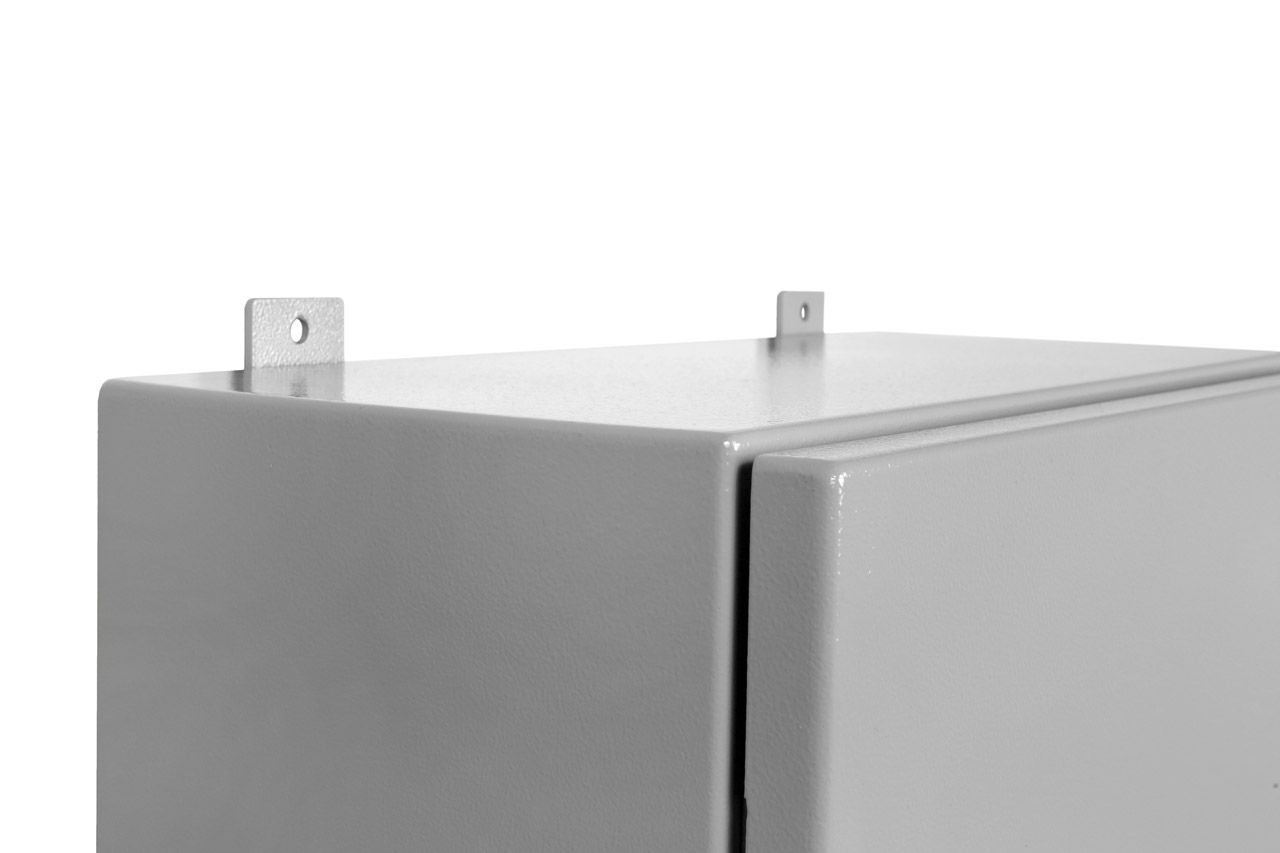

• Enclosure: Aluminum, wall mount
• Color: Textured Powder Coat ANSI 61 Gray
• Overall Dimensions: 32.00"H x 24.00"W x 11.50"D
• Weight: 55.0 lbs.
