PRODUCT DESCRIPTION

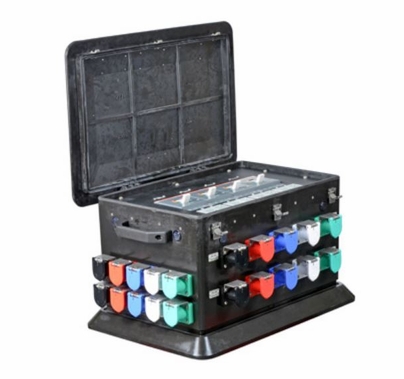

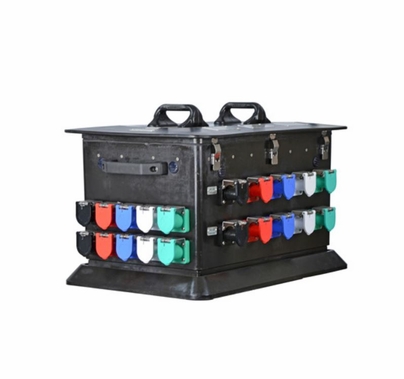

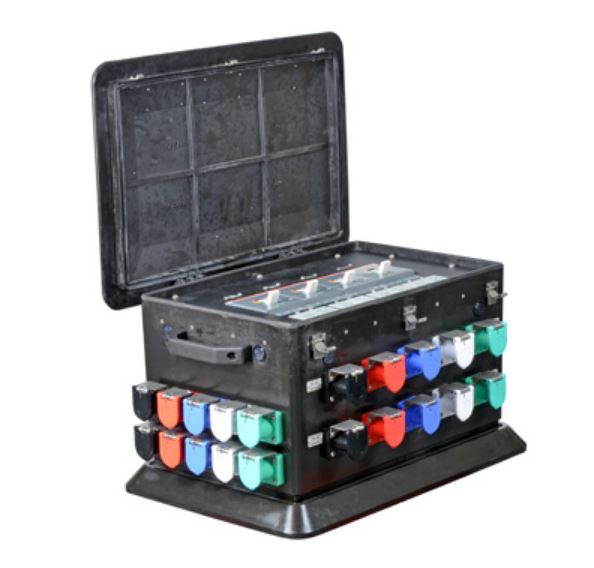

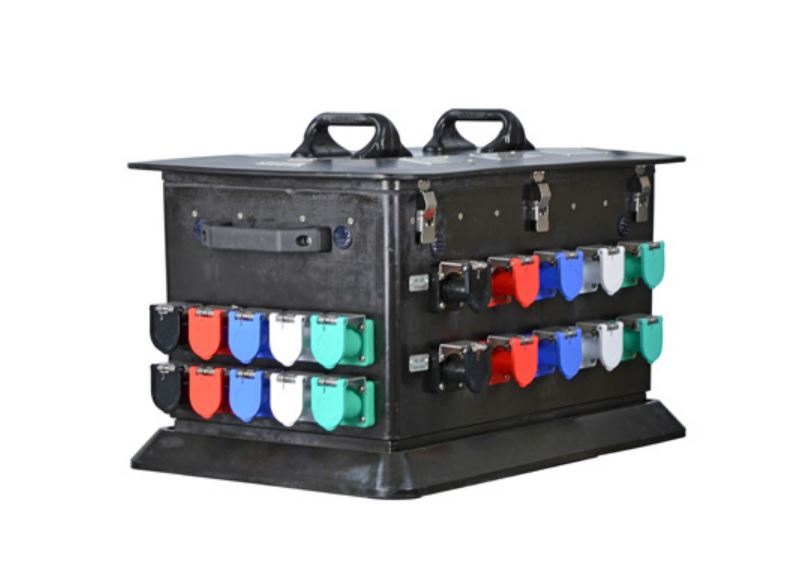

Lex Powerstation Load Master 600 Amp with (4) Adjustable Outputs, Weather Resistant,PH600G3-N1J-14AV
600A 120/208 VAC, (2) sets of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (4) sets of (5) 16 Series Cam-type, Single Pole Females (Outlets), Power Station.
The PowerHOUSE™ Load Master™ portable power distribution box distributes up to 600 Amps of 3 Phase power into (4) circuits. Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Features & Benefits
- Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more
- Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 600 Amps of 3 Phase power into (4) circuits
- Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
Markets Served
Outdoor Events, Motion Picture and Television Production
Technical Information<
- Rating: 600 Amp, Three-Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
- Environmental Rating: NEMA Type 3R (Weather Resistant)
- Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
- Feed Thru: None
- Main Breaker: None
- Output: (4) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets

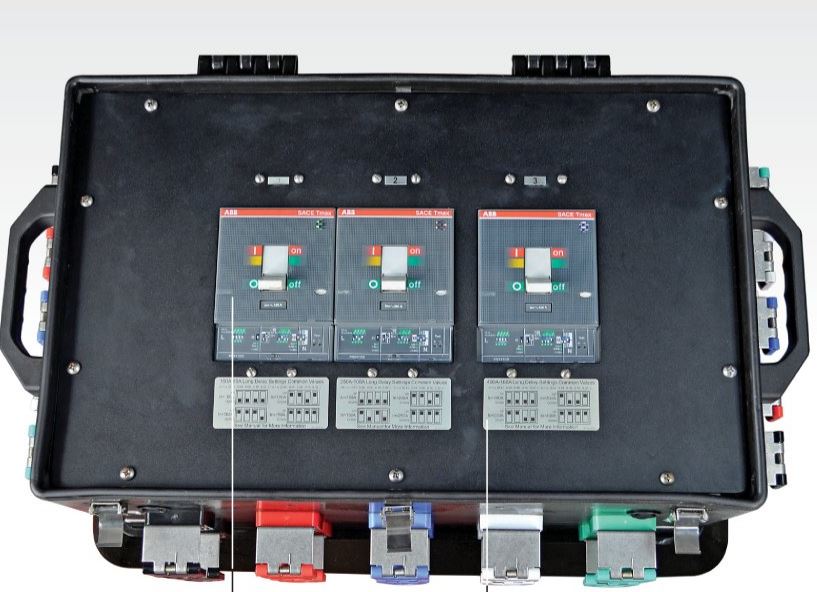

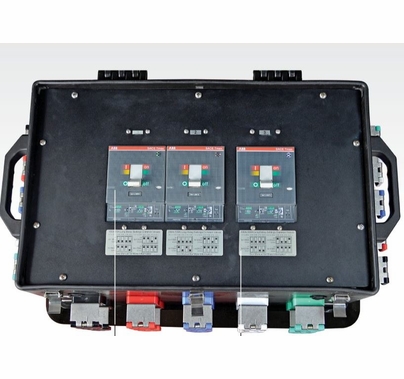

- Overcurrent Protection: (4) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
- Enclosure Type: Power Station
- Dimensions: 27.50"L x 18.50"W x 18.00"H
- Weight: 151.1 lbs
- Agency Approval: cULus Listed
