Lex 800 Amp Load Master with (3) Adjustable Output Circuits

PRODUCT DESCRIPTION

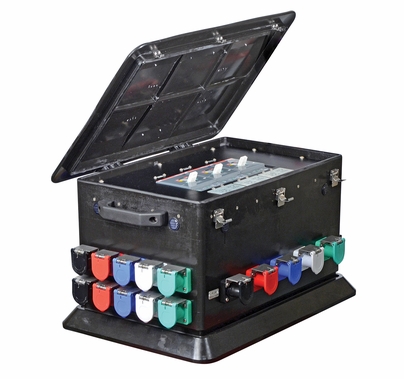

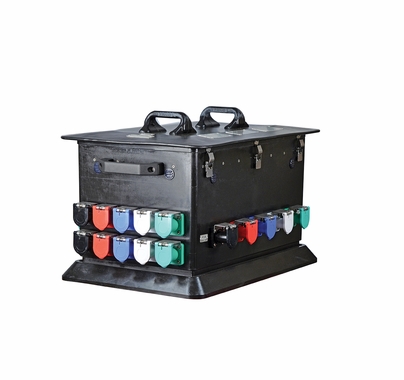

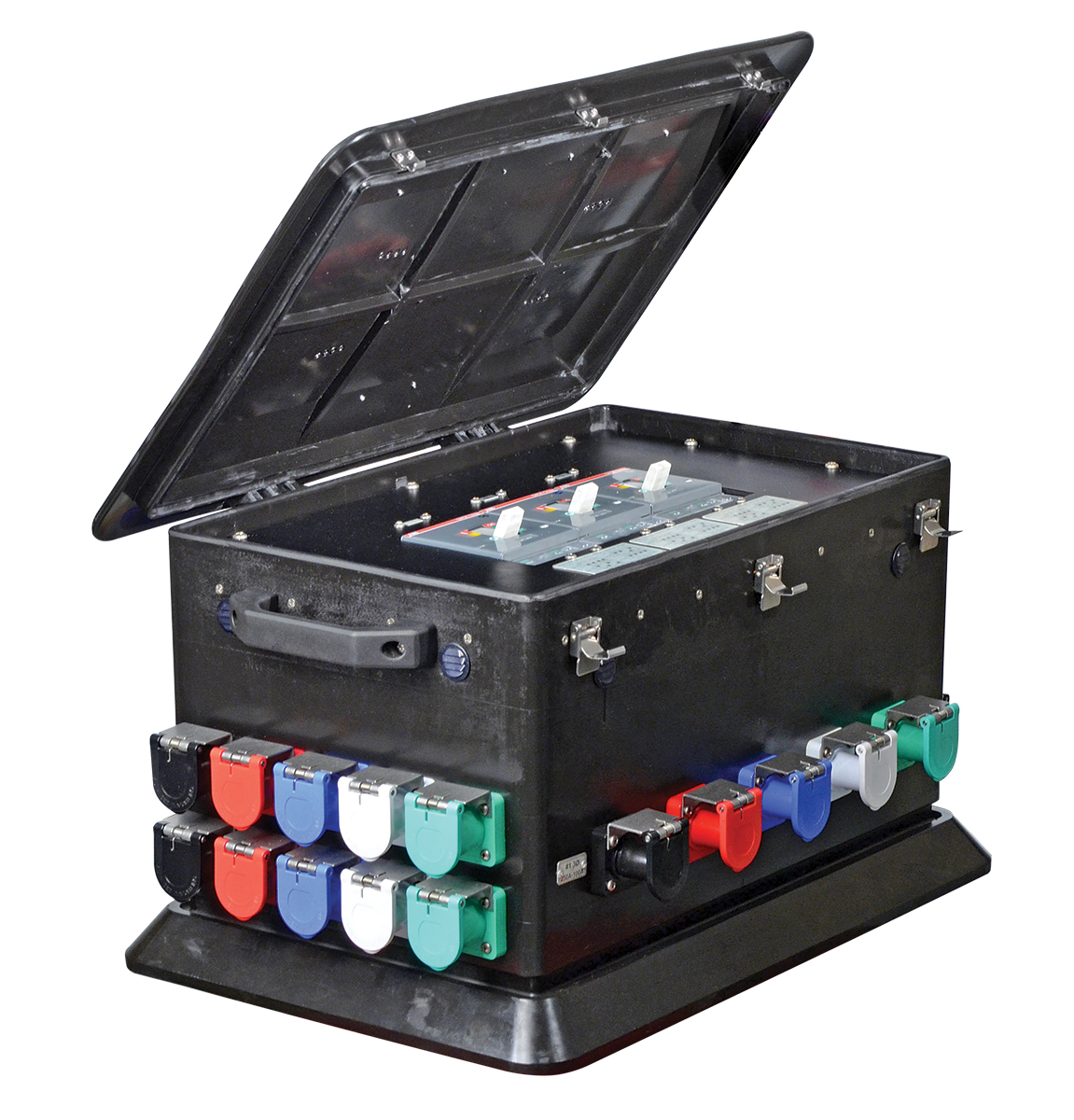

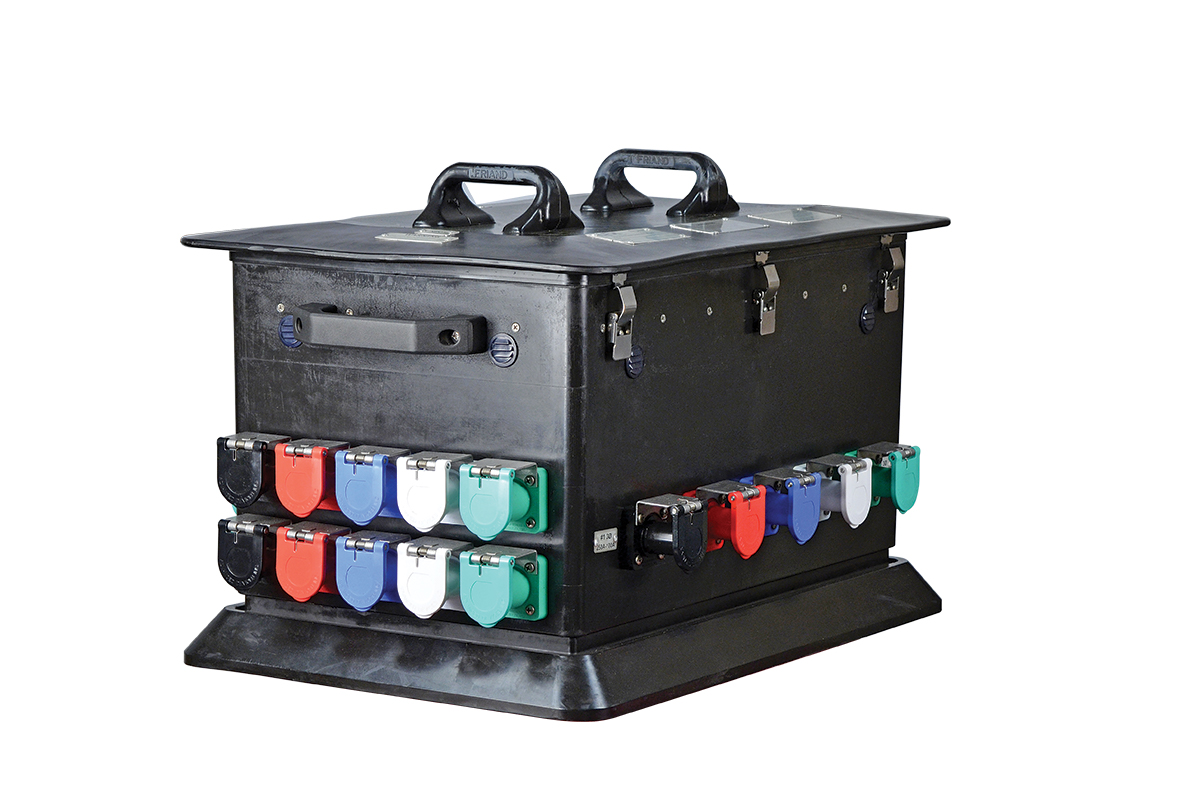

Lex 800 Amp Load Master with (3) Adjustable Output Circuits, PH800G3-N1J-13AX

800A 120/208 VAC, (2) sets of (5) 16 Series Cam-type, Single Pole Males (Inlets) to (3) sets of (5) 16 Series Cam-type, Single Pole Females (Outlets), Power Station.

Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more. Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits. Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.

Features & Benefits

• Typical applications include installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more
• Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits
• Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.

Markets Served

Outdoor Events, Motion Picture and Television Production

Technical Information

• Rating: 800 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
• Environmental Rating: NEMA Type 3R (Weather Resistant)
• Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
• Feed Thru: None
• Main Breaker: None
• Output: (3) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets

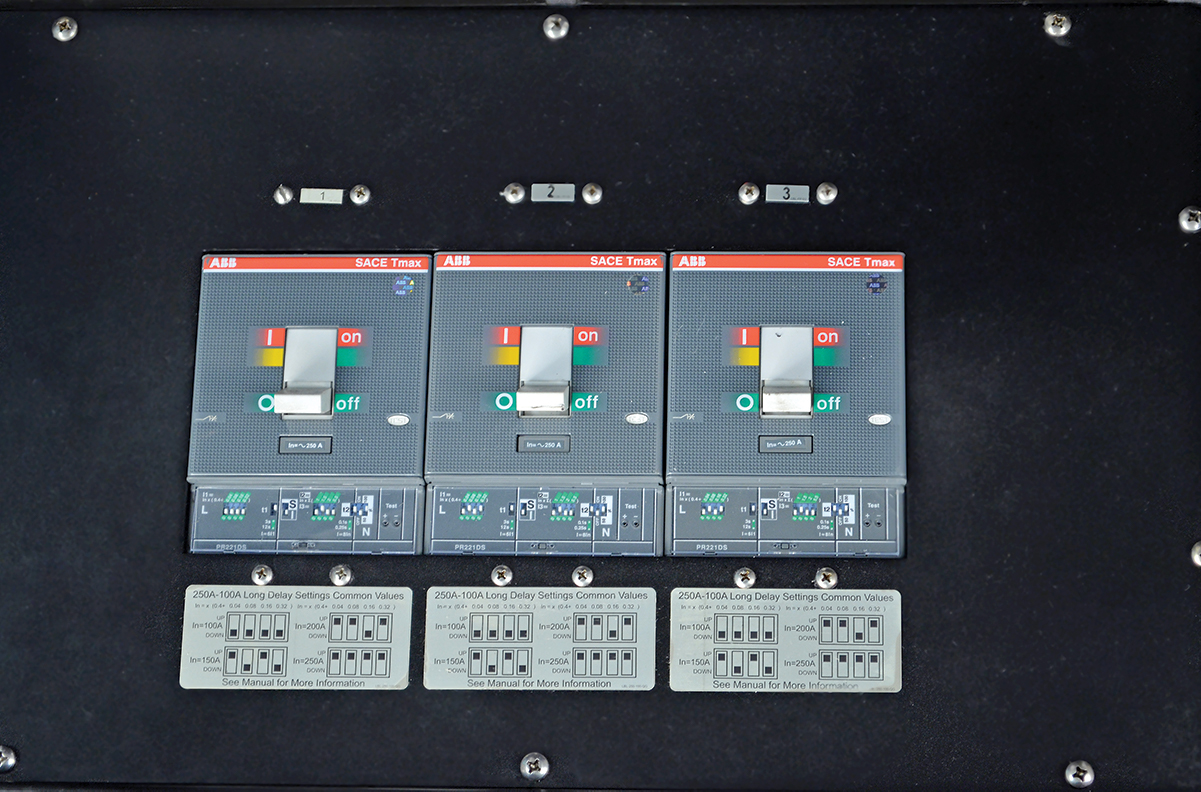

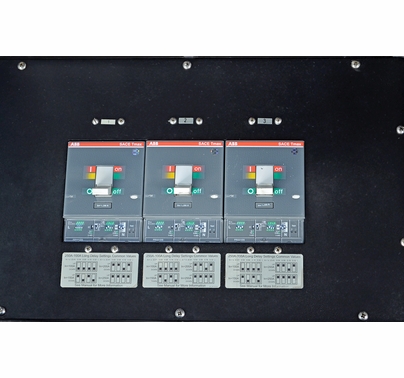

• Overcurrent Protection: (3) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
• Enclosure Type: Power Station
• Dimensions: 27.50"L x 18.50"W x 18.00"H
• Weight: 143.5 lbs
• Agency Approval: cULus Listed
