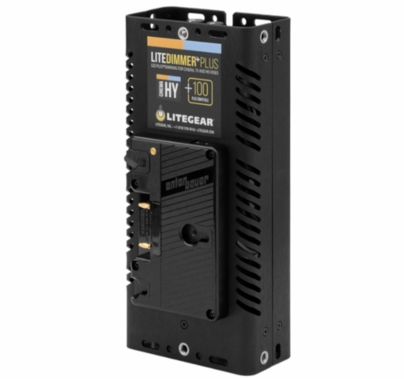

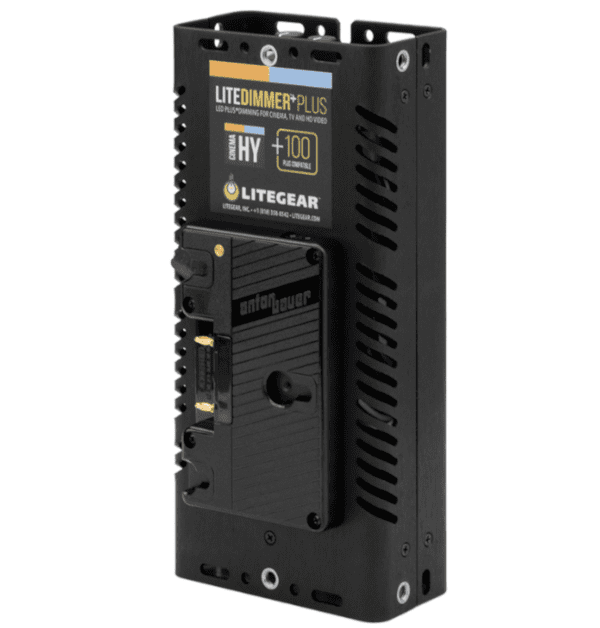

LiteGear LiteDimmer Plus 100W | Gold Mount

PRODUCT DESCRIPTION

LiteGear LiteDimmer Plus 100W | Gold Mount - LD1.00105

LiteDimmer+ Plus DC100G is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 100W unit can be powered using typical Anton/Bauer- or Gold Mount compatible batteries. Optionally, an external AC powered, 12 volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ Plus' rugged housing includes several different mounting options.

LiteDimmer Plus 100w Specs (IMPERIAL/METRIC)

• POWER RATING ................................ 100W
• VOLTAGE INPUT*(BATTERY)......... 14.4VDC Nominal (9~40VDC) (Gold Mount)
• VOLTAGE INPUT† (EXTERNAL) .... 9~40VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
• VOLTAGE OUTPUT........................... 24VDC Constant Voltage, PWM (PL7 Connector)
• TRIGGER JACK ................................... 2.5 mm TRS
• DIMMING RANGE............................. 0% to 100% Continuous, Flicker-Free
• CONTROLS .........................................
  On-Board “ON-OFF” Switch
  Manual Kelvin Dial
  Manual Dimming Dial
• SOFTWARE INTERFACE .................. Proprietary Connector, Service Center Upgradeable
• MOUNTING ........................................
  (4) 1/4-20 Threaded Inserts
  Drywall Screw Holes
  Velcro®/Cable Tie Slots
  Paracord Lanyard
• AMBIENT TEMP. OPERATION........ –10° to +50° C (14° to 122° F)
• IP RATING............................................ IP20
